TR-3710 Portable DC Resistance Tester (50kΩ/10A Test current)

It is a portable DC resistance tester designed for transformer winding resistance and ground connection testing. It features four-wire measurement, touchscreen operation, built-in battery, overload protection, and data management via PC software. Ideal for field applications with high accuracy and ease of use.

Product description:
Specifications:
Ordering Information:

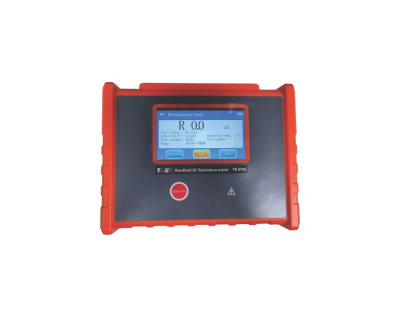

TR-3710 is Portable DC Resistance Tester, also known as transformer DC resistance tester, DC resistance rapid tester, grounding conductivity tester, adopts microprocessor technology, four-wire test, safe, precise and reliable.Is mainly used for measurement of transformer winding resistance, transformer winding resistance, ground down lead conduction testing and etc. its connection between objects such as metal components resistance test. TR-3710 is composed of a host, monitoring software, test line& communication line. Host handheld portable design is convenient for field application with charging function without on-site power search, full-color large LCD display, clear at a glance, easy to use touch screen operation, port overload protection function. The upper computer software has the functions of reading, consulting, saving and reporting historical data.

Feature:

  Resistance range 10.0uΩ ~ 50.00KΩ.
  Measuring current range 10A, 5A, 1A, 0.1A, 10mA, 1mA.
  Maximum short circuit current at 10A.
  Detection method with 4-wire test.
  Precision ±0.2%FS±10dgt.
  Touch screen operation.
  The upper computer software has the functions of reading, consulting,
saving and reporting historical data.

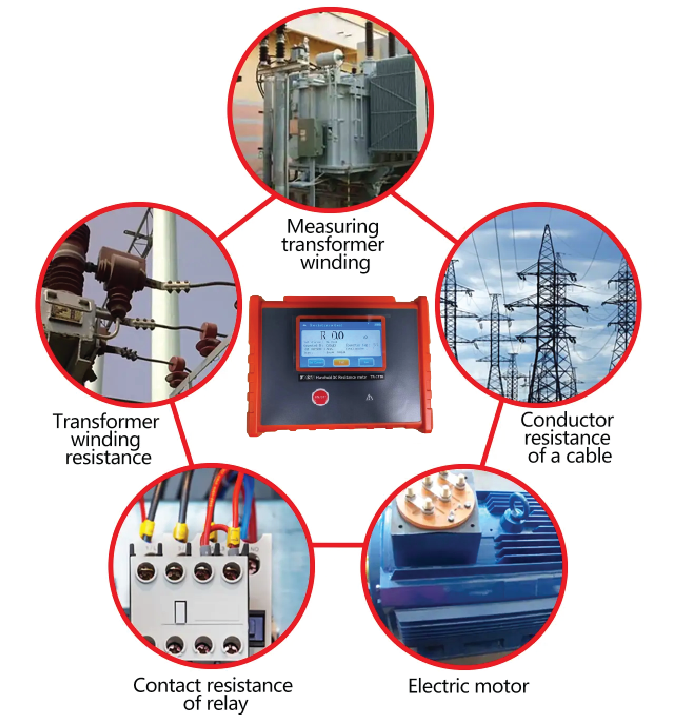

 Field Applications:
