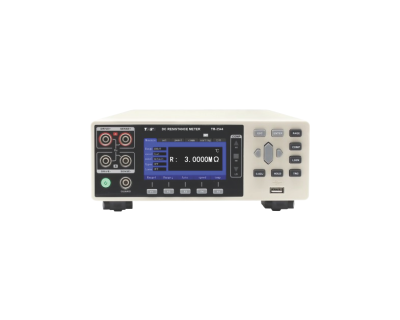

TR-3544 series High Precision DC Resistance Meter (0.1µΩ ~ 3.3MΩ)

TR-3544 series is a single-channel and multi-channel DC resistance meter with high efficiency and high accuracy of 0.02%. It is designed for different applications in desktop and portable. The test range of 0.1µΩ~3.0MΩ can meet most resistance test applications. The anti-interference circuit design enables the instrument to perform accurate tests in various complex electromagnetic environments. In the multi-channel model, each model has 2-wire and 4-wire switching modes with 12/24/48 channels respectively. It also stands out with its anti-interference perfor mance, making it very suitable for automatic support equipment to perform complete testing.

  Offering 0.02% basic accuracy, 0.1μΩ minimum resolution, 1A maximum test current.
  With measurable range 0.1μΩ ~ 3.3MΩ
  Anti-interference measurement is achieved by protecting the probe used by the port and increasing the test current.
  Using the sorting indicator (option) with loud volume sound to accurately judge whether it is qualified or not at the production site.

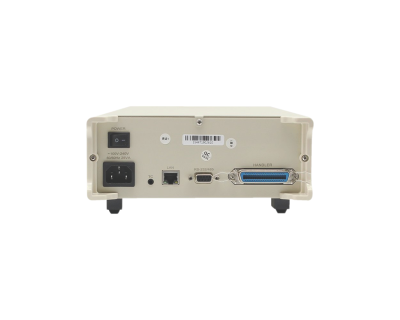

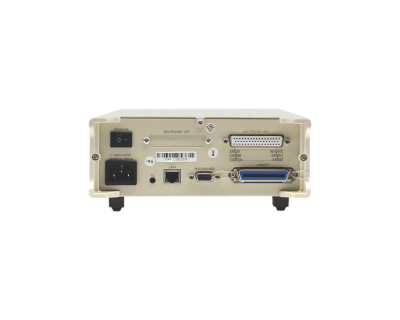

  Interface with RS232/RS485/LAN and EXT I/O port, TR-3544 multi-channel resistance meter is especially suitable for supporting ATE line to complete automatic test.

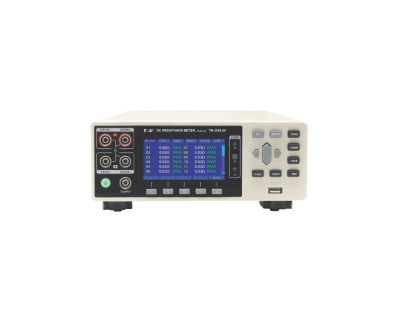

  Support multi-channel test, up to 24 test points via four terminals.
  Rich interface for automation equipment.
  Unique 300mA current test.
  With automatic test function.
  TR-3544-12/24 can guarantee test accuracy.

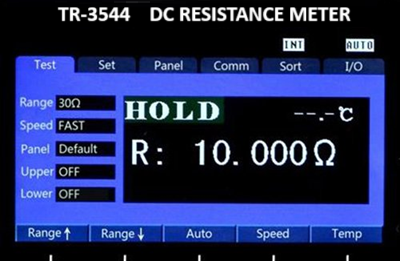

 Large screen display
