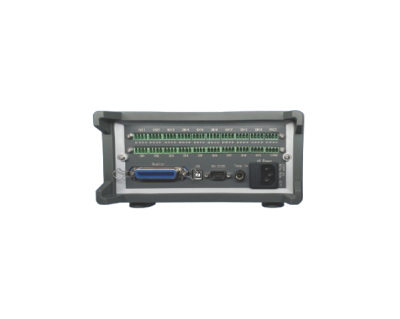

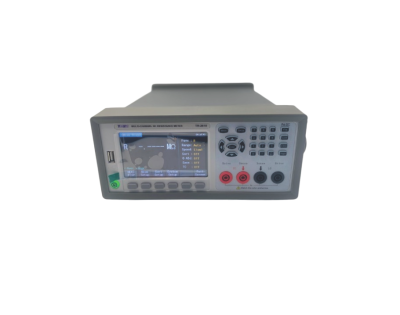

TR-2600 series Multi-channel DC Resistance Meter (1µΩ ~ 2MΩ)
| TR-2600 series is Multi-channel DC resistance meter, excellent performance, for testing relay contact resistance, interconnection resistance, PCB resistance, temperature compensation and conversion functions, making the test without the impact of the ambient temp and the offset voltage compensation effectively limits the voltage of the DUT. The automation of the contact potential in the production line can be greatly improved by realizing ultra-high testing speed and outputting 3 signals. Compare the results through the HANDLER interface. |
Feature
The maximum sampling rate is about 12ms/second channel.
Maximum resistance accuracy: 0.05%, minimum resolution: 1µ
Support up to 30 channels of scanning.
Basic temperature accuracy: 0.2°C.
R, LPR, T and other test function combinations.
Supports PT100 and PT500 temperature sensors.
Low voltage test mode, effectively protecting the device under test.
Temperature compensation function (TC).
Offset voltage compensation function (OVC).
User self-calibration function (0ADJ).
Stand-alone mode and scanning mode can be switched at will, realizing dual use of one machine.
Screen capture function, data recording and parameter saving function.
Each channel can independently set the sorting boundary and handler sorting results.
Instrument firmware can be upgraded via USB HOST.
Handler interface is used to implement online operations.
Support 100 sets of internal parameter files.
