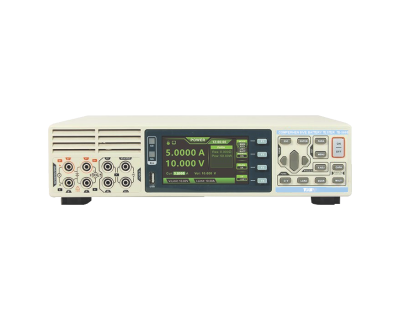

TB-3570 series Comprehensive Battery Tester

TB-3570 series is a high-precision, wide-range battery tester with advanced testing technology and microprocessor control. It supports multi-mode programmable testing, enabling efficient multi-station testing in one unit. With robust EMC resistance and rich interfaces, it’s ideal for automation and industrial environments.

Product description:
Specifications:
Ordering Information:



TB-3570 series is a high-precision, wide-range, high-performance microprocessor-controlled battery comprehensive tester. It adopts the latest battery testing technology and industrial design with beautiful appearance, powerful functions, fast and stable testing. Tester can automatically complete the programming test through multi-mode programming test and one station can complete the test of multiple stations before, which improves the test efficiency. Rich interfaces and communication protocols meet the installation requirements of automation equipment and after a variety of harsh EMC electromagnetic interference experiments, it is guaranteed that the instrument can calmly cope with various industrial field tests.

  Adopt ARM high-speed sampling control, high test accuracy and fast response speed; the accuracy and test range of voltage, current and internal resistance all surpass similar products, providing higher standards for product testing.
  Integrates all functions of DC power supply, DC electronic load and AC internal resistance meter.
  It can test the battery's AC internal resistance as well as the battery's DC internal resistance, meeting different types of internal resistance testing requirements.
  Large LCD display, richer content and clearer display.
  The internal resistance range is 30mΩ~3Ω, the minimum resolution is 1μΩ, and the maximum display is 31000; the voltage range is 6V~30V, the minimum resolution is 0.1mV, and the maximum display is 60000.

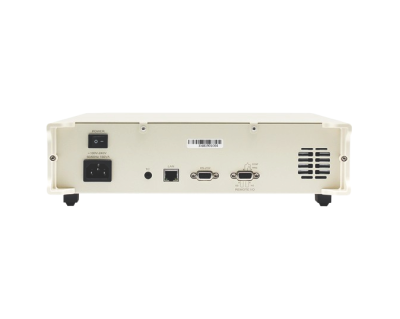

  With standard RS232 interface, LAN communication port, standard SCPI communication protocol, it can meet needs of customers in automated testing.
  Comprehensive test functions: battery activation, voltage internal resistance, charge test, overcharge test, DC internal resistance, discharge test, over discharge test, short circuit test, recovery test, resistance R1/R2, I2C voltage , I2C communication.
