TB-3554 series Handheld Battery Tester

TB-3554 series is portable battery tester is designed for large current and strong anti-interference to provide fast, complete and accurate diagnosis in internal resistance and voltage for backup UPS batteries and lead-acid batteries. Without stopping the instrument, TB-3554 can carry out UPS online measurement and rapid diagnosis of deterioration of the battery
much increasing the test efficiency. The built-in automatic data storage function can store up to 2400 sets of data.

TB-3554/A/B/D Handheld Internal Battery Tester is high-speed tester for accurate battery internal resistance and voltage test in the battery industry. As handheld tester the 3 models are lighter, smaller than desktop instruments, but their accuracy and speed is comparable to the bench top tester since they use the same circuit design of the classic TB-3563.

  TB-3554 series is special for online measurement of UPS battery and TB-3554A/B/D series are precision testers for ordinary batteries.
  Stable design-high resolution, minimum resolution 0.0001mΩ, maximum voltage and automatic trigger voltage 1000V, and the fastest test speed is 100mS.
  Excellent anti-interference performance, when the tester receives back EMF shock, it will automatically cut off the test circuit.
  Using the latest anti-interference technology to effectively reduce the 1/f noise.
  Handheld design, lighter and smaller but the accuracy and speed are comparable to desktop testers.
 Ultra-wide test range, the test voltage range is up to 1000V (TB-3554D only).

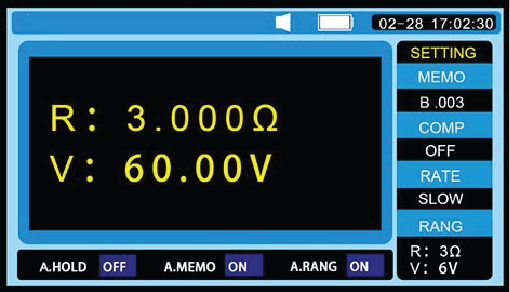

Operation Display
