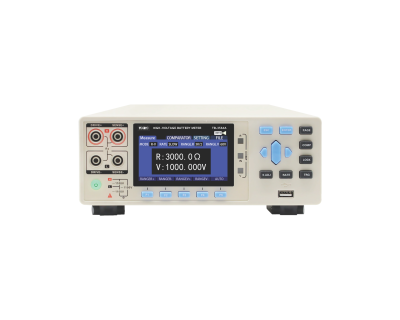

TB-3564 series High-Voltage Battery Tester

TB-3564 series is a high-performance tester for high-voltage, high-precision internal resistance testing of large battery packs and clusters. Built on years of expertise in lithium battery testing, it features fast, stable measurement, rich interfaces, and is ideal for R&D and automated production lines.

Product description:
Specifications:
Ordering Information:



TB-3564 series is a high-performance tester developed by Tessio Techonoly based on it's rich experience in lithium battery voltage internal resistance testing for many years, target the high-voltage internal resistance testing needs of large battery packs and battery clusters. It meets the requirements of ultra-high voltage test range+high-precision internal resistance test. This product has high resolution, good stability, short test cycle, exquisite appearance, powerful functions, rich interfaces and is suitable for product development and automated production lines.



Features

  Resistance minimum resolution 0.1uΩ and maximum range is 3.1kΩ.
  Ultra-wide voltage test range 10μV-1500V (TB-3564B only).
  Minimum test cycle only 10mS.
  Arc suppression technology and super anti-static design improve test safety.
  Rich standard interfaces suitable for automated test equipment.
  Strong anti-interference ability.
  Automatic battery test functio.

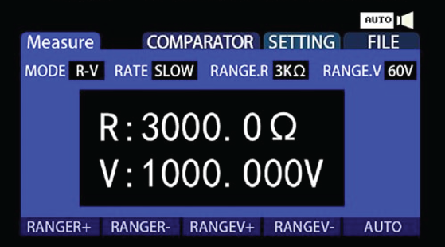

Battery Tester Beeper Configulation                                   TB-3564 series Battery Tester Operation Interface

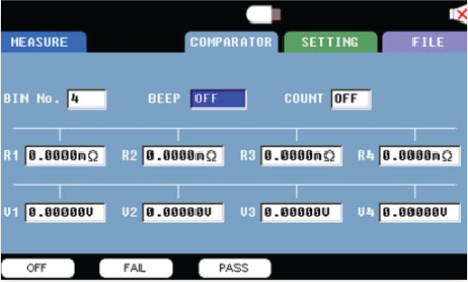

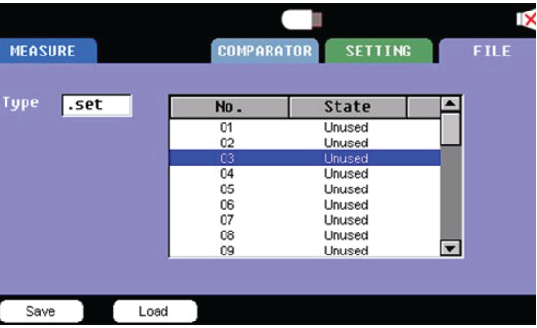

Battery Tester choosing Comparator Record



 Functions and Advantages

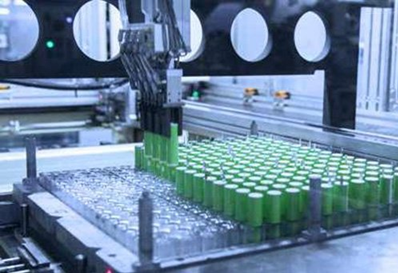

Fast sorting in automatic lithium battery production line

TB-3654 high precision and functional design, Hope Instrument battery tester is the tailor-made solution for your battery internal resistance and voltage test, small scale battery formation, capability grading, battery pack testing, etc.

With the rapid development of electronic products like cell phones, laptops, new energy electronic vehicles and other portable electronic devices, there is a higher need in batteries manufacturing. Meanwhile the requirement for batteries has become higher and more accurate. Hope instrument TB-3564B reliable precision internal resistance battery tester is suitable to offer fast sorting in battery automatic production line and greatly help battery manufacturer to improve productivity under good product quality control.

High-voltage 10μV~1000V application in battery testing

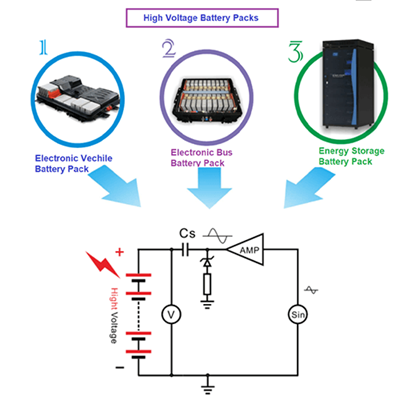

The difficulty of high-voltage battery testing is that high voltage will impact the internal circuit through the isolation capacitor CS, and the reduced capacity value will reduce the impact of high voltage on internal circuits, but too high capacitive reactance will cause excessively high open circuit voltage, which cause hidden damagers to human body and battery itself. Hope Instrument solves this problem very well and TB-3564 series has a max voltage of 60V~1500V for the battery packs.

  3564 battery tester high voltage application 10μV~1000V
