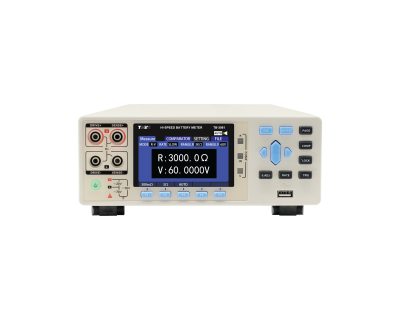

TB-3561 series Economic Battery Tester

TB-3561 series is a cost-effective, high-precision battery internal resistance tester designed for low-resistance batteries and high-capacity lithium packs. With 0.01 mΩ resolution, 20 V max test voltage, and 15 ms response time, it’s ideal for fast production line sorting. It includes RS232 and HANDLER interfaces for automated testing.

Product description:
Specifications:
Ordering Information:



TB-3561 series is economic precision battery internal resistance tester is designed for new measurement requirements in the battery industry. It is suitable for low resistance batteries, high capacity lithium battery packs and fast product sorting on the production line. With the technical advantages of Tessio Technology in battery internal resistance testing for many years, the TB-3561 is capable of providing a high resolution of 0.01 mΩ with a maximum test voltage of 20V and a minimum feedback time of 15mS. Equipped with standard features RS232 interface and HANDLER interface, TB-3561 offers the automatic battery measurement function.



Features

  High-speed sampling test with a minimum feedback time of 15ms for fast sorting on the production line.
  The highest test voltage reaches 20V, which is used for performance test of battery pack.
  High resolution resistance and voltage.
  Strong anti-interference ability.
  Support U disk to export data.
  Integrated the multi-channel scanning card inside the instrument and has the advantages of fast scanning speed (for TB-3561; option).
  Standard with RS232/RS485 and I/O interface, especially suitable for supporting automatic equipment to complete automatic test.
  Multi-channel resistance tester can be used for both single-channel test and multi-channel test.

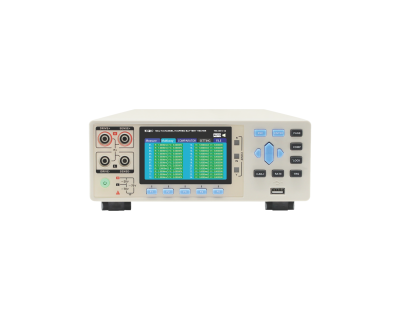

 TB-3561-12/24 Multi-channel Battery Tester

The TB-3561-12/24 multi-channel battery tester can quickly complete the internal resistance and voltage sorting test of the maximum 24-channel battery. Based on the identical test circuit of the classic TB-3561, the test speed and accuracy of this device are in leading position of the industry. They are the ideal supporting tool for automated test manufacturers.

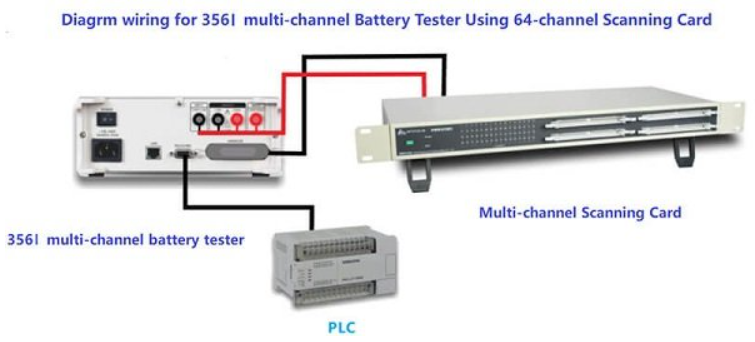

Tessio Technology also provides external multi-channel scanning card for multi-channel battery sorting or multiple battery packs. The wiring shows as following:

TB-3561 series instrument comes standard with RS232/RS485 and I/O interface, especially suitable for supporting automatic equipment to complete automatic test.

Integrated the multi-channel scanning card inside the instrument, TB-3561 has the advantages of fast scanning speed, strong anti-interference ability and long switch life. It is more convenient to use and more powerful.

The TB-3561-12 and TB-3561-24 multi-channel resistance tester can be used for both single-channel test and multi-channel test; They support single-card 12-channel in four-terminal test and max of 24-channel test.

 Applications

  • Lithium battery automatic sorting line
  • Multiple battery packs
  • Simultaneous measurement of multiple batteries
  • Measurement of electric vehicle battery packs
