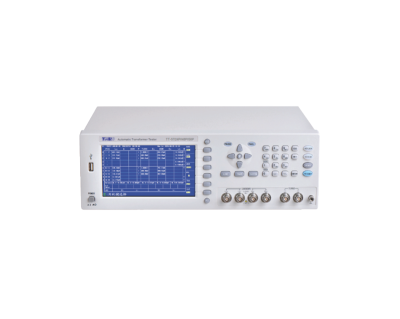

TX-9700K series ♦ Automatic Transformer Test System

Short Description

High-performance transformer tester offering fast, stable, and precise testing with a 7" true-color LCD for clear display of all parameters. It supports 20–192 pin test fixtures and interfaces such as RS232 and GPIB, making it suitable for various transformer testing applications.

Product Description:
Specifications:
Ordering Information:



TX-9700K series is transformer tester is a new generation of Tessio’s transformer tester, which is designed around the concept of providing the customers with more precise、more effective and easier solutions. Our research team and sales team are very excellent. Our research engineers and sales engineers have over ten years of experience. On the basis of meeting the high stability, the test speed is faster than the speed of the instruments before. TX-9700K series transformer tester will push forward technical progress in the future. This series instruments use 800x400 and 7 Inch true color LCD to realize the display of all the test parameters on one screen. Transformer test box can be selected from 20 pins to 192 pins to meet the different needs. RS232, GPIB, etc.


  Features

 Basic accuracy is 0.05%.
 Open, short, load correction and deduct deviation correction.
 Update the software by U disk to provide the latest user experience.
 Inner DC constant current source (0~1A) is optional.
 The test data is the same as the test data of the well-known international brands (such as Agilent, WK).

  Key lock function, save test condition when power off.
 PASS/FAIL LED display, the beeper volume combination control.

  More excellent test accuracy

The typical evaluation method of the instrument’s test accuracy in the CBB industry is to compare the D test value of the evaluation instrument with the D test value of the HP4284A or E4980A. The test condition is that the test frequency is 100kHz. If the D test value of the evaluation instrument is the same as or close to the AGILENT instrument, we can say that the evaluation instrument has excellent performance. When TX-9700KX series with LCR was used in some famous CBB manufacturer, the test engineer said: TX-9700K Is an excellent meter for CBB D test, except AGILENT and DB. The chart on the left is the D comparison between TX-9700K and E4980A. The test frequency is 100kHz and the capacitances are from 1 nF to 2.2 uF. From the char, we can see that the D test value is close to the D test value of E4980A. The max gap between TX-9700K and E4980A is 0.03%



  The fastest test speed

Because the labor cost becomes higher and higher, the improvement of the test speed can reduce the manufacture cost greatly. To improve the test speed, we adopt new techniques such as new MCU and new fast sampling techniques. On the basis of meeting the high stability, the test speed is faster than the speed of the traditional instruments before. Even if the test frequency is lower frequency such as 100Hz, the test speed can reach the same speed as the high frequency. The chart on the right is the speed comparison among the typical transformer testers on the market. The horizontal axis is the instrument type and the vertical axis is the instrument’s test quantity of the net transformer which is 20 pins in the same test time. We can find the significant difference on the speed among several instruments.

  The higher stability

Although the speed is improved, we can also keep the test stability. On the left chart, it shows the stability comparison between 2819XB and TX-9700 series. The two instruments both use the fastest test speed and test the same set on one net transformer 15 times. The horizontal axis is the test step and the vertical axis is the Leakage inductance test result. From this chart, we can find that the stability of the TX-9700K is better than 2819XB.

  More excellent test accuracy

◆ To increase the programming efficiency of the transformer test file, we develop the computer software for transformer test file programming.
◆ By using this software, you can program transformer test files fast on the computer, and can save them to U disk, or send them to the instrument by LAN or USB interface.
◆ U disk with FAT16 or FAT32 both supported
◆ Save setting file to U disk
◆ Save test results to U disk
◆ Save 100 files in inner disk
◆ The function for File search

 Scan Box Name: TX9706Y-20P/24P or -48P/96P

▶ Auto(A) and Manual(M) are optional.
▶ Four terminal test technique, optimized relay matrix structure.
▶ The reeds have good contact performance with long life time.
▶ Test effect is excellent because of low distributed capacitance.
▶ The test fixtures and the converting boards can be customized.
