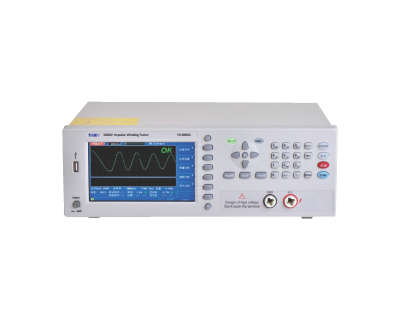

TX-9800 series Impulse Winding Tester
| TX-9800 series is Impulse Winging Tester are designed for winding elements. high Voltage-small Capacity and DUT unitize RLC parallel resonant circuit,through damped oscillator waveform, 100Msps Sample Rate and micro-processing technology,We can check defective Insulation (turn-to-turn short, layer short, Insulation reducing) |
Features
7 inch 65K color 16: 9 TFT display, resolution of 800 x 480.
100Msps sampling rate, 6.5kBytes memory depth (Custom-made 200Msps)
Test Speed: 15 times/sec.
Comparison with standard waveform:Area Size Comparison, Differential Area
Comparison, Corona Discharge Comparison, Differential Phase Comparison.
Excellent Voltage stability,Testing repeatability.
Powerful Corona Test Function, discover Potential insulation problem.
Measuring parameters are Autosaved.
Wave vertical enlarger, horizontal zoom, Wave Shift.
Standard sample mean function, can be up to 32 times the average standard
waveform processing.
Automatic Standard Wave Sample is suitable to select Impulse Voltage.
Break Test is suitable to select Impulse Voltage.
Pulse applied, ensure the test waveform consistency.
By USB HOST to realize the instrument firmware version upgrade.
The BNC trigger on the rear panel of the instrument can be connected with the foot switch easily.
Handler, RS232C, USB Device, USB Host and GPIB (Option).
Expanded Two Channels, Four Channels Function are useful for threephase three-wire motor and three-phase Four-wire motor.
Expanded Two Channels, Four Channels Function

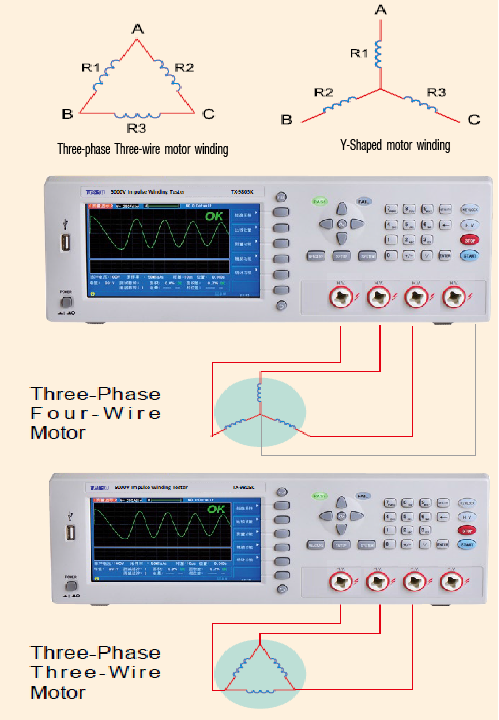

TX-9805K-2 Two channels, TX-9805K-4 Four channels are useful for three-phase three-wire motor and three-phase Four-wire motor. Motor windings are tested one time. Avoid Multiple Switching,Test Fast,efficient,good cost Performance ratio.

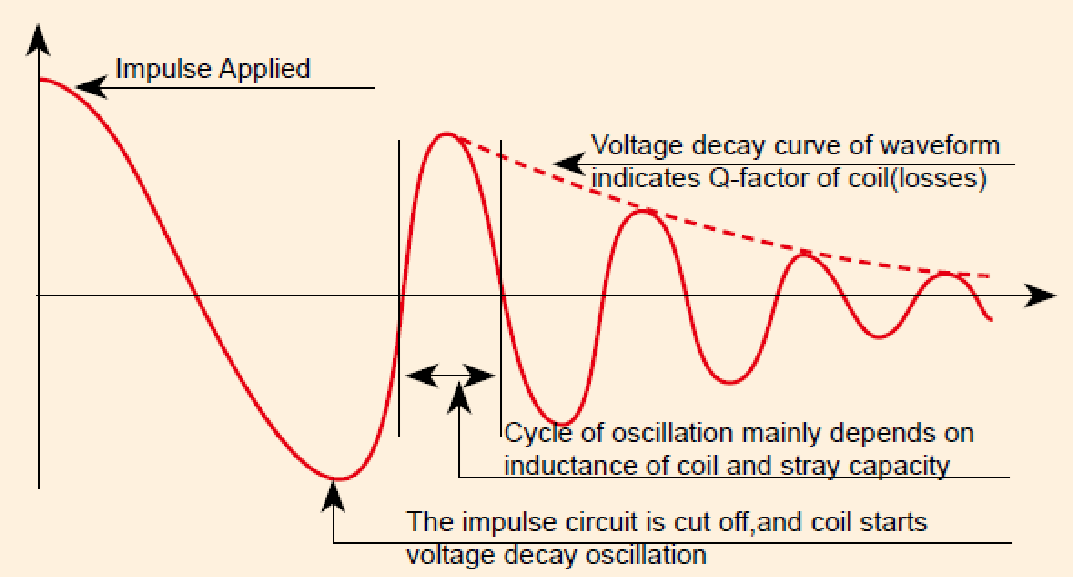

Advance Impulse Test Thery
Winding element impulse test : high-speed, small-capacity, non-destructive
Impulse is applied to DUT,through comparison good products waveform and
defective waveform, we can distinguise products. TX-9800 have huge screen,
ultra-high Sample Rate and high-performance micro-processing technology.
Powerful Corona Test Function
hrough Customized 200Msps High-Speed Sample Rate, We can extract corona
information accurately, distinguish good products or defective products. The
corona information display in LCD Screen.
Unigue break test function
Break test is test model which starts Start Voltage, ends End Voltage and steps Step Voltge. Break test can help customer to realize withstand voltage for DUT.
