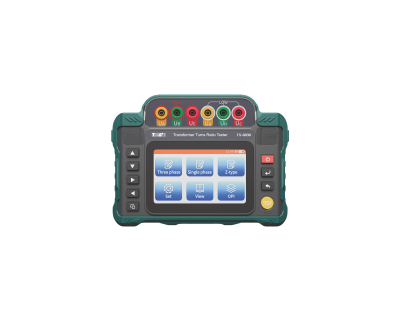

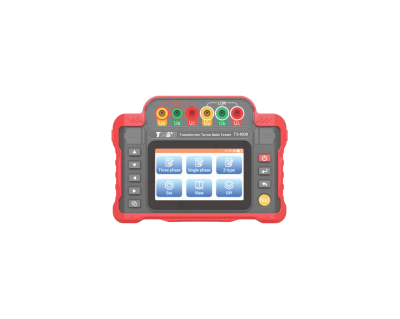

TS-6030 ♦ Transformer Turns Ratio Tester
Short Description
Microprocessor-based transformer turns ratio tester for fast and accurate measurement of transformer ratio and phase group. Featuring a large color touchscreen, built-in battery, overload protection, and storage for up to 500 test records, it supports Chinese/English operation and PC software for data review and management.
Categories:
Impulse Winding & Transformer Testers
Product Description:
Specifications:
Ordering Information:
| TS-6030 is The transformer turns ratio tester adopts microprocessor technology for measurement calculation and automatic control, which can quickly and easily measure the actual transformer ratio and group of the transformer. It is mainly used for measuring transformer transformer ratio and group in the power industry, and it is also used for measuring transformer parameters by transformer manufacturers and distributors. The transformer turns ratio tester is composed of the main machine, monitoring software, test line, communication line, etc. The host has the charging function without the need to find electricity, full color large screen LCD display, the language can be selected in Chinese or English, at a glance, touch screen operation is easy to use, port anti-overload function, large capacity storage of 500 sets of data. The upper computer software has the functions of reading, consulting and saving historical data. |
Feature:
★ Various test modes: single-phase test, three-phase test, three-phase blind test, Z-type test.
★ Data storage: 500 groups.
★ Wide measurement range: variable ratio 0.9~10000.
★ Measurement accuracy: 0.2% when the variable ratio is 0.9 to 2000, and 0.5% from 2000 to 10000.
★ Max. resolution: 0.0001.
★ Support for computer-side control.
★ Support for Bluetooth control.
