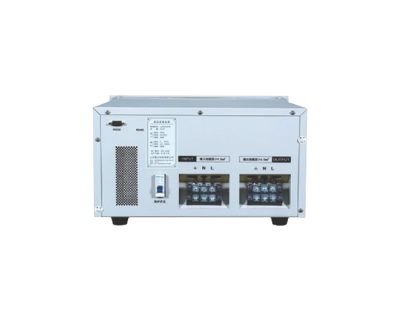

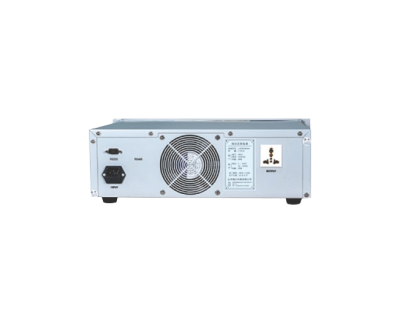

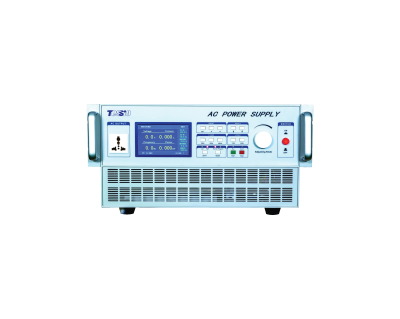

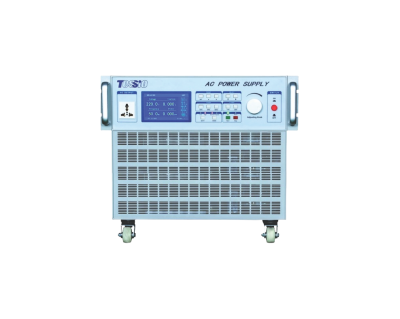

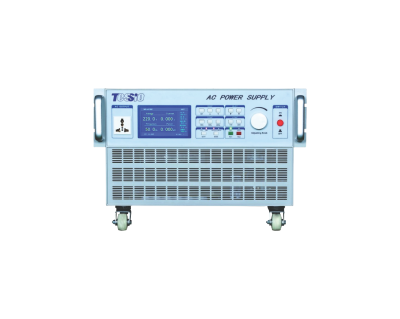

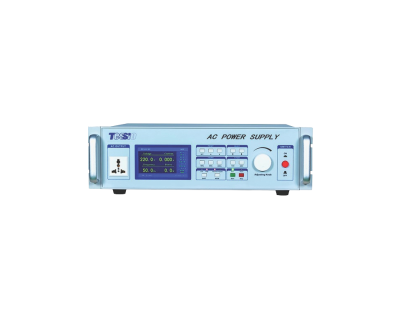

ATS-1000X series ♦ Single-phase Output AC Power Supply
Short Description
ATS-1000X series is a new economical single-phase AC power supply that simulates global grid voltages with soft-start and high surge current capability. It supports regular and programmable modes with up to 20 programmable functions and automatic output control. Features IoT control and multi-unit parallel operation for flexible, scalable, and resource-efficient testing applications.
| ATS-1000X series is ATS-1000X series is new design with economic type single-phase AC power supply can simulate the grid voltage of all countries in the world, providing soft-start, withstand 3 times overshock current, small size & light weight. It has regular and programming mode operation. It can realize various 20 programming functions and supply automatically control the output, support iOT control function, multi-machine parallel output function, realize the parallel output of multiple power supplies, convenient and flexible, and save resources. |
Features
It is small in size and light in weight, and can meet the installation requirements of standard cabinets.
Fast startup speed, it can start output in just 3 seconds.
5-inch color LCD screen displays measurement and setting parameters clearly at the same time.
Low output voltage harmonic distortion, THD <1.0% (ATS-1000B series).
Strong overload capacity, can withstand 3 times overcurrent impact for 2 seconds (ATS-1000B series).
Equipped with a digital encoder knob, users can quickly and accurately set output parameters.
It has an output current limiting function and will automatically alarm if the set current limit is exceeded.
The main power components and integrated circuits are imported.
It has good electromagnetic compatibility (EMC) and strong anti-interference ability.
It has high measurement accuracy, strong load adaptability, and is suitable for various loads.
It has good electromagnetic compatibility (EMC) and strong anti-interference ability
It has two operating modes: normal mode and programming mode, with multiple functions and a wide range of applications.
It has a soft-start function, which can realize voltage slow-rise start (0.1~3S), effectively solving the surge impact generated when inductive and capacitive loads start.
It has 20 built-in programming groups, allowing users to implement various programming functions. The power supply output is automatically controlled, saving time and effort.
Easy to operate, excellent performance, suitable for various applications such as laboratories and system integration.
Standard configuration includes an RS232 communication interface (baud rate selectable, up to 115200bps), with optional RS485 and Ethernet communication interfaces for more stable and reliable connection with instruments.
Intelligent fan control: The fan speed can be automatically adjusted according to the power supply temperature, resulting in low noise.
Equipped with multiple protection functions such as overvoltage, overcurrent, overload, overheat, and short circuit, ensuring high reliability of
the power supply.
Output waveform start and stop angles can be controlled arbitrarily from 0 to 360 degrees, making it more suitable for testing switching power
supplies (optional).
IoT smart control function, allowing you to easily remotely control the power supply using your mobile phone or computer (optional).
Multi-unit parallel output function, enabling parallel output of multiple power supplies, which is convenient, flexible and saves resources (optional).
***** Accept custom orders based on special specifications and requirements.*****

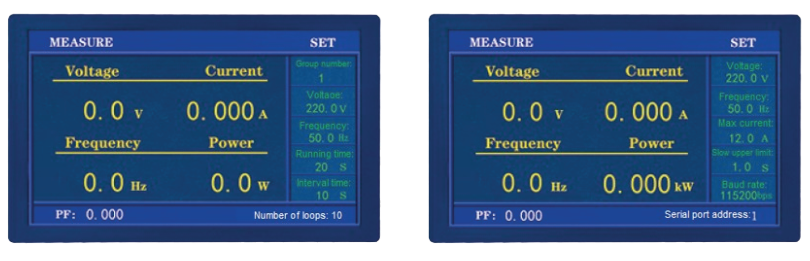

LCD Color display
