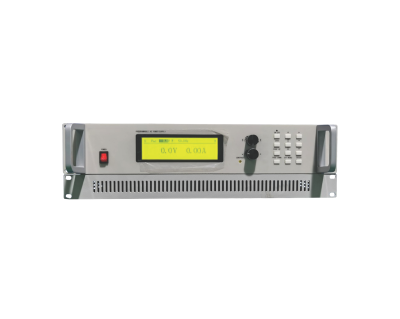

TFB-series High-Precision Programmable AC Test Power Supply
| TFB-series is High-Precision Programmable AC Test Power Supply, This series power supplies can output the voltage of power grids in various countries around the world and simulate the normal and abnormal conditions of power grids in various countries according to relevant standards and regulations. |
Features
It has output modes such as AC, DC and AC+DC.
Programmable testing meets the voltage frequency variation test requirements of IEC61000-4-11, IEC61000-4-14 and IEC61000-4-28.
The harmonic and interharmonic modes can be superimposed with 2-40th harmonic components on the basis of 50Hz/60Hz, or with interharmonic components of 15-2400Hz, to meet the IEC61000-4-13 harmonic and subharmonic waveform synthesis test requirements (except for single-phase conventional type and three-phase output type).
Programmable output impedance testing meets IEC61000-3-3 testing requirements (except for three-phase output type).
Outputs high peak current, providing an ideal surge test environment
Pulse output function to realize voltage surge testing and simulate interference in actual power grid.
The step and sequence test functions meet the testing requirements for complex voltage and frequency changes.
Provide an external analog signal input interface to realize power amplification of external input signals.
