TCC-series AC Constant Current Power Supply
| TCC-series is AC constant current source is primarily designed for low-voltage electrical appliance manufacturers, inductive component manufacturers, electrical testing organizations, electrical research institutes, and university training bases. It is suitable for testing and calibrating the time-delay and transient characteristics of components like circuit breakers and relays. It is also suitable for testing the rated current, operating current, short-circuit current, and other thermal effects of inductive components like transformers, instrument transformers, and inductors. The product utilizes SPWM high-frequency inverter control technology and IGBT output conversion, resulting in high accuracy, fast response, low distortion, and excellent current stability. Active PFC technology is employed at the input, resulting in a high input power factor and minimal grid pollution. This makes it a highly efficient and energy-efficient current measurement device. |
Features

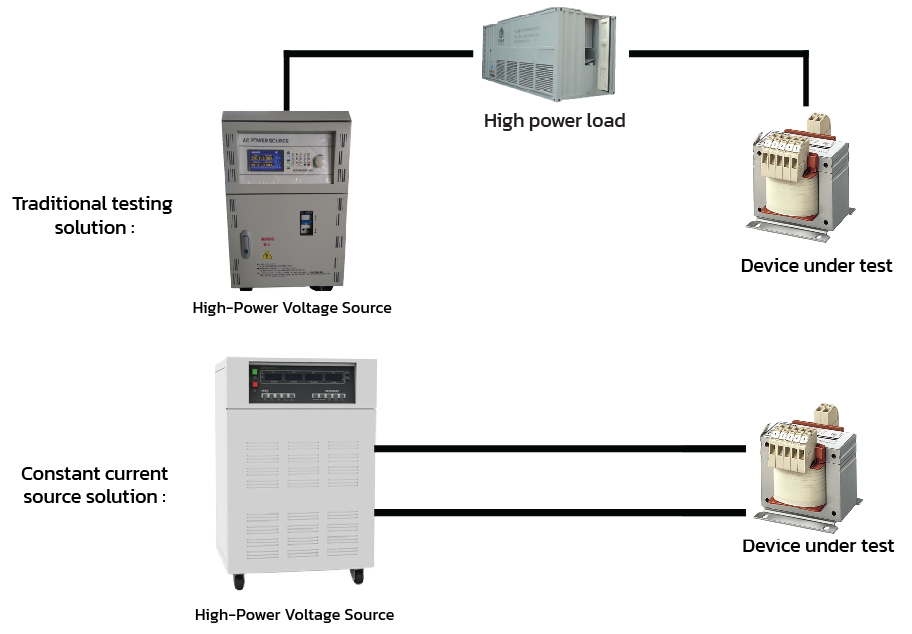

Using an advanced current closed-loop control strategy, it achieves stable current output, unaffected by load fluctuations. Compared to the traditional voltage source + load + device under test test method, this significantly reduces capacity and energy consumption, eliminates large-capacity loads, and significantly reduces costs.
Using SPWM high-frequency inverter technology to achieve constant current output, it offers higher precision, faster response, lower distortion, and higher efficiency than motor-controlled constant current sources. Temperature drift caused by external temperature changes is negligible, making it a future trend in industry testing.
It has high output current, reaching several thousand amperes, making it suitable for distribution cabinet busbars and aging circuit breakers. Testing.
A wide range of output current and frequency settings adapts to the needs of various industries.
Built-in energy measurement circuitry measures current, voltage, frequency, power, and test time. Dynamic response speed is fast, with a load-sudden change response time of less than 20ms.
Output current and frequency settings can be adjusted in real time, and the output is instantly updated. Key components are sourced from renowned international brands, ensuring reliable quality, stability, and durability. Key technical indicators utilize a multi-redundancy design concept. Voltage stress, current stress, and heat generation have all undergone rigorous technical verification and type testing, ensuring high reliability and long life.
