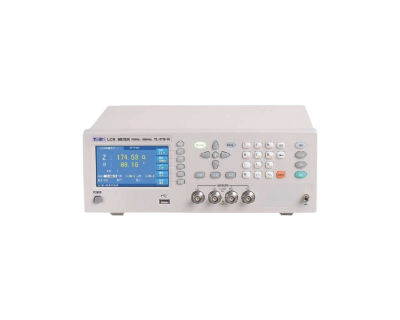

TL-3600 series I Digital LCR Meter (Fixed freq.)
Short Description
This high-precision LCR digital bridge offers wide-range impedance measurement and can replace models *2810B/*2817B. It measures L, C, and R with adjustable frequency and signal levels, supporting both high-speed production and lab-grade accuracy. Equipped with HANDLER and RS232C interfaces for automated sorting systems and computer communication.
Categories:
LCR Meters
Product Description:
Specifications:
Ordering Information:
| TL-3600 series LCR digital bridge is a high-precision, wide-range impedance measurement instrument that can be easily upgraded to replace the *2810B/*2817B. It allows for convenient selection of the test frequency and signal level. It can measure various parameters such as inductance (L), capacitance (C) and resistance (R). It meets the needs of high-speed inspection in production environments as well as the high-precision, high-stability measurement requirements of laboratories. Furthermore, the instrument's multiple interfaces, including HANDLER and RS232C, enable its use in automated component sorting systems, network communication with computers |
Features
ø Frequency up to 100KHZ, 10 frequency points selectable.
ø Testing speed up to 30 tests/second, with customizable higher speeds.
ø Direct reading/absolute deviation/relative deviation.
ø Built-in comparator: 4-level sorting.
ø Parameter setting protection function.
ø Audible and visual alarms for good and bad products.
ø Strong shock resistance.
