TL-3700A series 20Hz~300kHz High Precision LCR Meter (Continuous Freq.)
TL-3700A series compact LCR meter combines low cost with high performance and 0.05% basic accuracy. Features a 4.3" TFT LCD, software-controlled power switch, and SCPI-compatible interfaces for easy integration.Ideal for inspection, production testing, and scientific research applications.
Categories :
Temperature Testers
Product Description:
Specifications:
Ordering Information:
| TL-3700A series is a new generation compact LCR meter of low cost and high performance. Instead of traditional mechanical power switch, it adopts software control power switch. The basic accuracy of 0.05% and good test stability can compare favourably with those high-end models. Being equipped with 4.3 inch TFT LCD Display and brand new interface system, its possess elegant appearance and easy operation. Also, being provided with various interfaces and good compatibility with SCPI commands, This models are convenient for constituting all kinds of test system and satisfy various kinds of demands for inspection, production and scientific research. |
Features
24-bit color 4.3-inch color LCD display.
Basic accuracy: 0.05%
DC bias ±5V/5mA.
Signal source 0 ~ 2V/0 ~ 20mA and All six main and auxiliary parameters.
The maximum speed can reach 13 ms
Frequency up to 300KHZ and continous frequency.
Screen capture function, data recording and parameter saving function.
Operating software can be automatically upgraded via USB HOST.
10-level comparison function, upper limit, lower limit, qualified, alarm function.

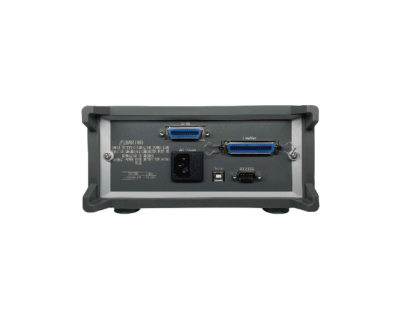

Handler interface is used to implement online operations.
Support SCPI amd MODBUS protocols.
