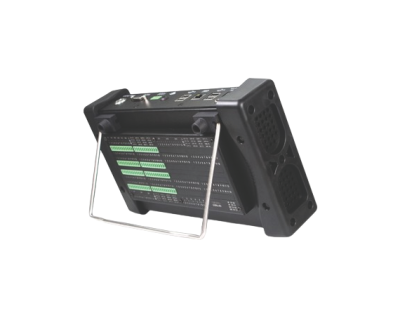

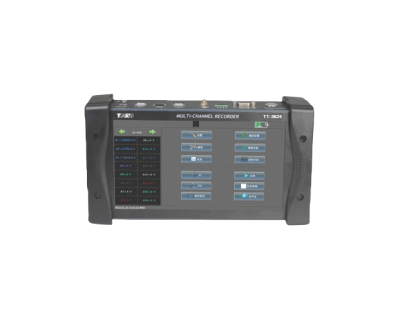

TT-3600 series Handheld Multi-channel Data Recorder
TT-3600 series handheld recorder is designed to record multiple parameters including voltage, temperature (thermocouple, Pt100/Pt1000), current, resistance, count, and frequency. It displays results in graphs or numeric values and stores data on a 1TB internal SSD or USB. Data can be transferred and analyzed using license-free Tessio Lab software.
| TT-3600 series is The new generation handheld recorder series is designed to test the parameters you need to record in the process voltage test sensor test (0-100V), temperature test ( thermocouple, Pt100-Pt1000 ), current test (optional shunt), resistance test, count, frequency. You can visually observe the test results ( graphics and numerical values ) and store the test results in the recorder's internal solid-state 1TB hard drive or USB, and you can use the license-free Tessio Lab software for data transfer and processing on the computer. |
Features
◊ 16-bit resolution, 10” TFT panoramic touch screen
◊ Maximum 1ms sampling speed per channel and up to 96 analog channels
◊ 1kHz bandwidth
◊ 1TB built-in solid state drive
◊ Universal input: voltage, thermocouple, thermal resistance, current (optional adapter required), resistance and NTC.
◊ Voltage: 0.01mV~100V (directly input ±100V)
◊ Temperature: Thermocouple (all types), Pt100/Pt1000 (3-wire or 4-wire)
◊ Abundant communication interfaces are USB, Ethernet, serial port WiFi
◊ Built-in Lithium battery: 8h standby
◊ Tessio Lab software (license-free)
