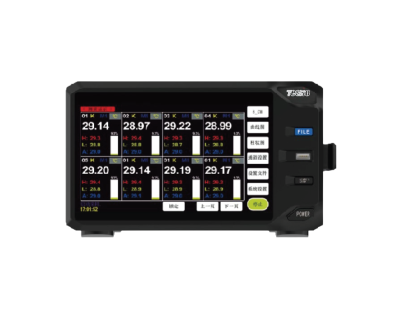

TT-2500H series Multi-channel Temperature Data Recorder
Multi-channel temperature data recorder with 16 models. It features a 7-inch touch screen and supports both of thermocouple sensor J, K, T, E, S, N, B, R type and Resistance temperature detector sensor PT100, Cu 50. Tester displays data via numeric, bar chart, and curve graph modes, and supports USB data storage, alarm limits, and communication interfaces. With excellent performance and user-friendly design, it suits production, lab, and R&D applications.
Categories :
Temperature Testers
Product Description:
Specifications:
Ordering Information:
| TT-2500H series is mulit-channels temperature tester included 16 models, this series adopts 7 inch touch screen and support 2 kinds of tempearature are thermocouple (type J, K, T, E, S, N, B, R) and RTD (Pt100, Cu50)thermocouple. It can collect multi-channel data simultaeouslt, with intuitive number reading, bar chart and curve graph diplay modes, allowing users to read various parameter in multiple ways. Data can also be recorded on a USB storangedevice. Meanwhile, tester has upper and lower limit alarm functionand communication transmission capabilities. With it's prefect function, superior performance and simple operation, it can fully meet the measurement needs of production. laboratories and R&D. |
Features
7-inch 24-bit true color LCD screen, 480X272 resolution.
Support 10ms scaning speed. support up to 48 channels scanning, the industry's highest integration temperature scanning tester.
Thermocouple type : K, J, T, E, N, S, R, B.
Thermal resistor : PT100, Cu50.
Voltage measurement and specify channels scan.
Built-in 4GB memory, standard BGU disk and USB HOST interface, support U disk storage and support U disk partitioning.
With a file system,current instrument setting will not be lost when power is turned off.
Cold junction compensation.
Screen capture function, data recording and parameter saving function.
