89600 Series Multi-channel AC/DC Power Meter
This multifunctional power analyzer accurately measures power, power quality, and efficiency for advanced engineering applications. It supports multi-input analysis and helps verify compliance with strict energy efficiency standards, including PV inverters and motor drives. Ideal for energy-saving equipment, EVs, hybrid systems, and renewable energy testing and analysis.
| 89600 Series is Power analyzer is the ideal tool for engineers, capable of accurately measuring power, power quality and generation efficiency. In motor and drive design, engineers often need to consider whether multi-input analysis is possible or whether the stringent energy efficiency standards of photovoltaic inverters are met. The feature-rich helps engineers successfully bring their product concepts to market. This is a multi-functional power analyzer whose precise power measurement capabilities help researchers, designers, and engineers perform a wide range of testing applications in the fields of energy efficiency, energy conservation and renewable energy. Whether in the production of energy-saving equipment, appliances, hybrid power systems, electric vehicles, or in the technology of renewable energy, it is a versatile instrument capable of performing electronic measurements and energy analysis. |
Features

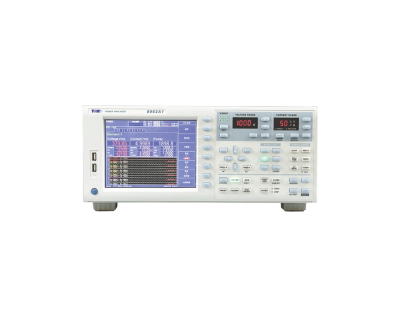

■ 8-inch color touch screen for more convenient operation.
■ 1 ~ 6 channels can be freely selected and the motor specific interface can be expanded, multi-mode, multi- range selection, flexible and free.
■ Using Fanelesb processor, 16-bit of chip 6 channel voltage and current sampling at the same time Bandwidth of 0.5Hz ~ 300kHz and accuracy ±(0.1% of reading + 0.05% of range), capable of performing up to 500 harmonic analyses (fundamental power frequency).
■ Sampling rate is 200k/s, and the data update period is freely adjustable (50/100/200/500ms, 1/2/5/10/20s) and the fastest can reach 10ms.
■ Voltage (1000VAC/1500VDC) and current 50A can be switched between 8 gears.
■ 1 ~ 500th harmonic test, support fundamental wave range 10Hz ~ 10kHz, inter-harmonic test function can be added.
■ Multi-mode filter, support fixed 1000Hz, 1 ~ 100kHz adjustable line filter, frequency filter 10Hz-10kHz adjustable.
■ Support external sensor access, freely expand the test range of voltage and current.

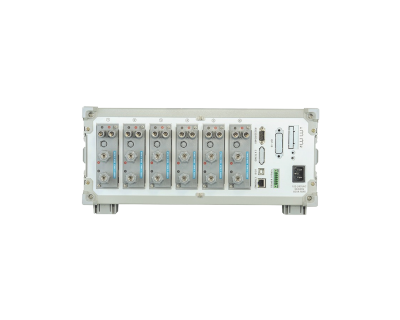

■ Many communication interfaces, standard USB, RS485, RS232, Ethernet ports.
Interface function
Power analyzer can support a variety of wiring methods, including 1P2W, 1P3W, 3P3W, 3V3A, 3P4W, etc. Users can configure the multi-channel mode according to the requirements to meet the measurement of voltage, current, power, efficiency and other parameters of specific loads
Appications of Power Analyzer are following:
Solutions for motor starting and stall testing
Motor back electromotive force measurement
Low power factor measurement of passive components such as reactors
Detailed Explanation of Power Converter (Inverter) Efficiency Measurement and Synchronization Source Setup
Motor starting method test
Understanding PWM
Motor stall test solution
Tests to assess the performance of a variable frequency compressor controller
Inverter performance testing
Introduction to UPS power output test cases for power analyzers
Application of Tessio Power Analyzer in Automotive Motor Testing
Solar photovoltaic inverter testing
New energy vehicle repair testing
Electric vehicle drive motor test
Electric vehicle DC-DC controller testing
Electric vehicle charging pile and on-board charger testing
Classification of electric motors and historical improvements in electric motor testing methods
Inverter testing
Efficiency test of variable frequency motor
Wind turbine input power testing application case
