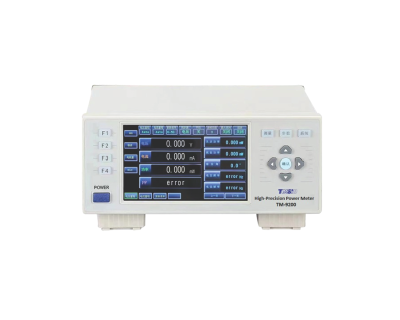

TM-9200 Single-phase Power Meter with Harmonic function
Digital power meter uses a 32-bit processor and dual 24-bit AD converters for high precision, wide dynamic range, and compact design.Supports standby power consumption measurement and meets diverse communication needs with RS232/485, USB and Ethernet. Widely used to evaluate energy-saving performance in line with new energy efficiency standards.
Product Description:
Specifications:
Ordering Information:
| TM-9200 is designed with an advanced 32-bit high-speed processor and dual 24-bit AD converters. It features high precision, wide dynamic range and a compact and flexible structure. It is a new generation of digital power meter. With the continuous introduction of new energy efficiency standards, there is a fierce competition around how to improve energy-saving performance. PM9200 is a power measurement instrument used by many companies to evaluate the energy-saving performance of equipment. It has high precision, ultra-low. It has features such as standby power consumption measurement, and RS232/485, USB, Ethernet and other interfaces basically meet users' different test communication needs. |
Features
It has a DC band width of 0.5-1kHz and a maximum accuracy of 0.05%.
Digital LCD display can simultaneously display voltage, current, power, power factor, frequency, harmonics, and more.
It can measure voltage up to 600Vac/dc, current up to 40Aac/dc, and power up to 24kW.
It has a refresh rate of up to 0.1 second.
Supports standard RS-232/485/USB and Ethernet communication (optional).
