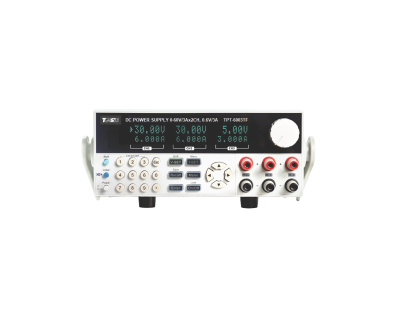

TPT-TF series Triple-output Programmable DC Power Supply (198 ~ 378W)
| TPT-TF series are high-performance 3-channel programmable power supplies with 3 independent outputs. Covering voltage ranges from 0-30V to 0-60V and current ranges from 0-3A to 0-6A, they balance high precision and flexibility. A standout advantage is their high resolution (1mV/1mA) and low ripple (2mVrms), with load regulation 0.01%+3mV ensuring precise output. Supporting series, parallel, and synchronous modes, CH1 and CH2 can be combined to expand power, meeting complex testing requirements. Rich in functionality, they offer 40 groups of parameter storage and recall, as well as a timed output function to enhance efficiency. A VFD display shows real-time 3-channel data for intuitive operation. Standard RS232/USB communication, compatible with multiple protocols, facilitates system integration. An intelligent fan adjusts speed based on load; the compact body (255×110×380mm) comes with a year warranty, making it suitable for industrial testing, laboratory R&D, and similar scenarios. |
Features
Output specifications: CH3 outputs 0~6V, 0~3A; 30V, 3A * 2CH / 30V, 6A * 2CH / 60V, 3A * 2CH.
Simultaneous display of voltage and current for all three channels.
All three channels of voltage are continuously adjustable within their rated ranges
Each channel has an independent output switch for easy control
Supports series, parallel, and synchronous modes; CH1 and CH2 can be combined to expand power.
Can be used in series, parallel or synchronous.
Low ripple and low noise.
Software monitoring and correction can be carried out through the computer.
40 sets of set data can be saved and quickly stored and recall.
RS232 and USB interfaces are standard, support SPCI protocol and MODBUS protocol and can be controlled by PLC.
