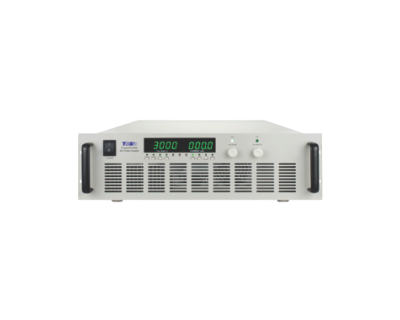

TPHC-series ♦ High-Current Programmable Switching DC Power Supply
Short Description
High-power switching DC power supplies rated from 600W to 9kW, with output up to 600V and 300A. Featuring ZVZCS PWM technology for high efficiency and stability, they are housed in a compact 2U/3U 19-inch chassis with standard RS232, RS485, and RS422 interfaces for digital control.
| TPHC-series are high power output Switching DC power supply with rated power from 600W to 9KW. The PCL series adopts ZVZCS PWM technology, which greatly reduces switching consumption and therefore facilitates switching function with high efficiency and high stability. This series are built into a 2U/3U 19-inch standard chassis. The maximum rated voltage is from 6V to 600V and the maximum rated current is from 2A to 300A. RS232, RS485 and RS422 communication interfaces are made as standard part for TPHC series, providing multiple communication choices for digital control. |
Features:
◆ Adopting ZVZCS PWM technology, high efficiency and high stability.
◆ 4 1/2 digits LED display for voltage and current.
◆ Max.rated output 600W to 9KW.
◆ Max.rated voltage from 6V to 800V.
◆ Max.rated current from 2A to 300A.
◆ Thermostatic control fan, low noise.
◆ Low ripple, high stability.
◆ No overshoot during startup.
◆ List mode function, Auto Run function.
◆ Remote sensing function.
◆ Adjustable voltage rise time.
◆ Preset function, setting of voltage and current with output open circuit.
◆ Front panel operation: preset voltage and current, output ON/OFF.
◆ Multiple protections: OVP, OTP, UVP and current limit protections.
◆ Multiple programming interfaces: RS232, RS485.
◆ Support ModBus-RTU commands.
◆ Optional function: 0-5V, 0-10V or 4-20mA analog control and feedback
for voltage and current.
Applications / Functions:

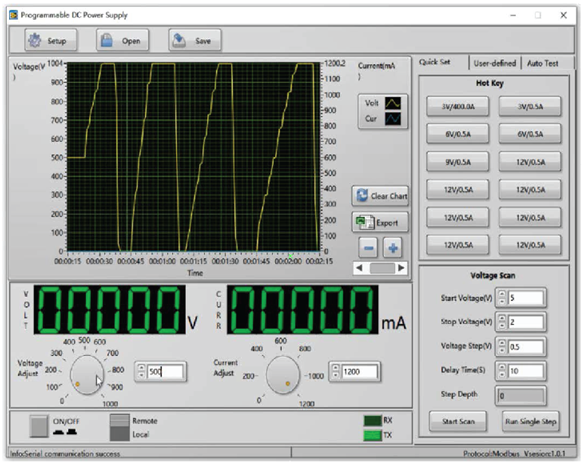

◆ Multiple remote control and sampling functions. Such as: voltage & current setup, voltage & current feedback, data recording, export data to EXCEL, List mode function, auto run function. Adjustable voltage rise time.

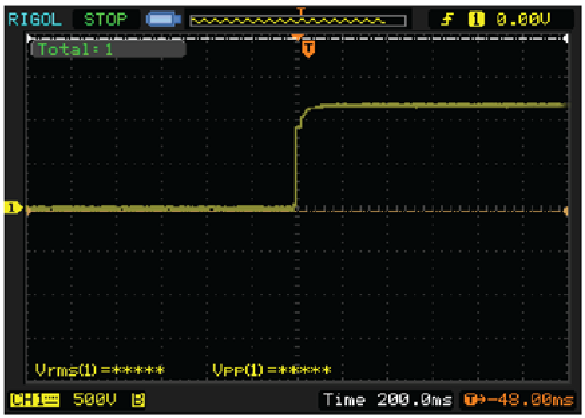

◆ No overshoot during startup

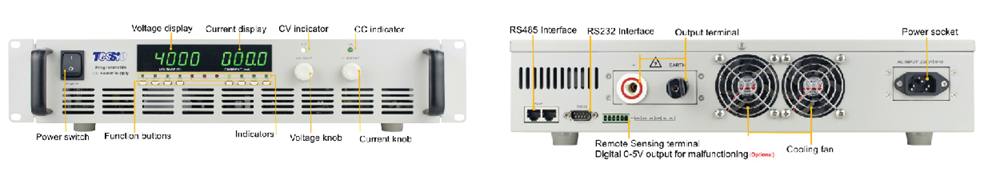

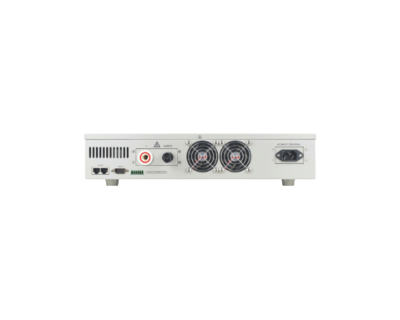

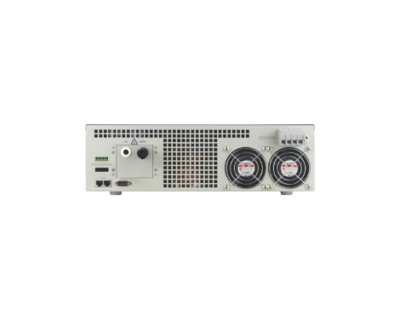

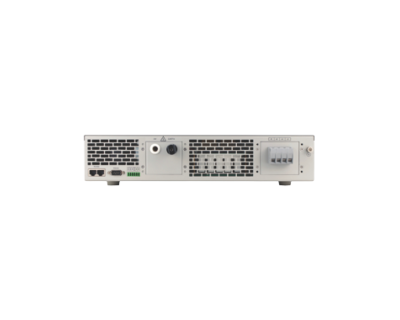

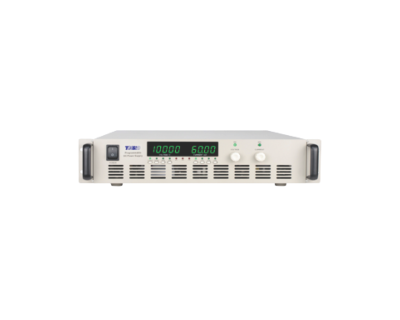

◆ Front Panel Descriptions (2U frame) ◆ Rear Panel Descriptions (2U frame)
