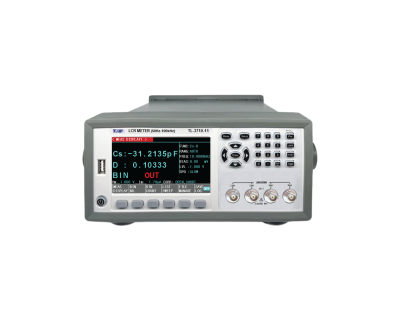

TL-3700 series 50Hz~100kHz Benchtop LCR Meter (Fixed Freq.)
TL-3700 series precision LCR digital bridge offers 50Hz–100kHz test frequency and 0.01–1V signal level with programmable DC bias.Measures L, C, R, impedance (Z), Q, D, θ, and DC resistance automatically with high accuracy and flexibility.Ideal for impedance analysis and parameter evaluation of passive components, relays, PCBs, cables, and batteries.
Categories :
Temperature Testers
Product Description:
Specifications:
Ordering Information:
| TL-3700 series is a precision LCR digital bridge, a micro desktop instrument controlled by a high-performance. The instrument can choose any testing frequency between 50Hz ~ 100kHz and can choose a testing signal level between 0.01V and 1V n steps of 0.01V. It has built-in -1V~+1V programmable DC bias to automatically measure inductance, capacitance, resistance, complex impedance Z, quality factor Q, loss angle tangent D and phase angle θ (degree), phase θ (radians) and DC resistance. This model can meet the requirements of passive component are imdepance analysis and parameter evalation of inductors,capacitors, resistor, network components, impedance measurement of relays, circuit boards, cables, switchsm batteries. |
Features
24-bit color 4.3-inch color LCD display.
Basic accuracy: 0.1%
Frequency up to 100KHZ, 11 frequency points.
All six main and auxiliary parameters.
Soft switch start.
DC resistance DCR measurement (only model TL-3710-11).
The maximum speed can reach 19ms
10-level comparison function, upper limit, lower limit, qualified, alarm function.
Screen capture function, data recording and parameter saving function.
Automatically upgrade the instrument operating software via USB HOST.

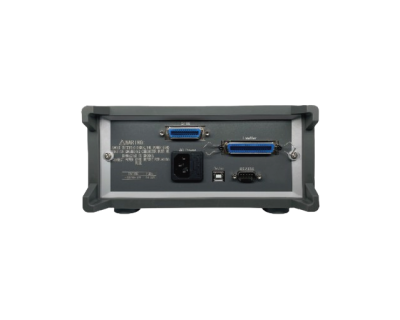

Handler interface is used to implement online operations.
Support SCPI amd MODBUS protocols.
