TL-3800A series Precision Digital LCR Meter (Continuous Freq.)
| TL-3800A series This is a new upgraded series. Large font display, easier to read. It is used for laboratory quality control. Test frequency range 10Hz to 300kHz. Test signal level 0.01Vrms ~ 2.00Vrms. Add DCR and DC bias measurement within ± 2.5V. It can test 4 components parameters simultaneously. Each parameter can be configured as needed. This new and improved instrument displays 6 bits of the main parameters and 4 auxiliary parameters. It can scan 10 kinds of frequencies or level lists, and also for 3 groups of users, the frequency can be fixed to improve the accuracy. Built-in comparator, through the HANDLER interface, combined with the PLC to complete the automatic sorting of components. |
Features

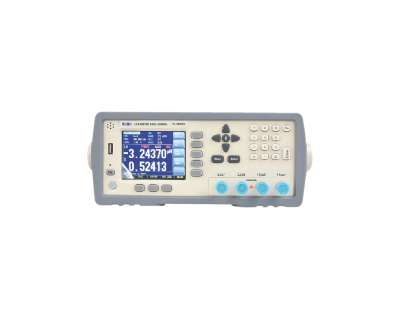

True color TFT-LCD display.
Store 999 LCD screen files, trigger delay, automatic level control (ALC).
Correction function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.
Multi-frequency test: support 10 frequency scan tests
Multi-level test: support 10 level scan tests
10 sets of file management for full storage of instrument status, list scan settings and comparator settings.
Enhanced comparator (sorting) function: Programmable P1~P9 Nine-segment sorting, main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM, etc. Output.
Absolute deviation (ABS) comparison mode, relative deviation (PER) and order (SEQ) comparison.
Switchable accessory file (AUX) sorting.
Programmable from 1 to 200 times to provide stability.
Custom sorting results are heard.

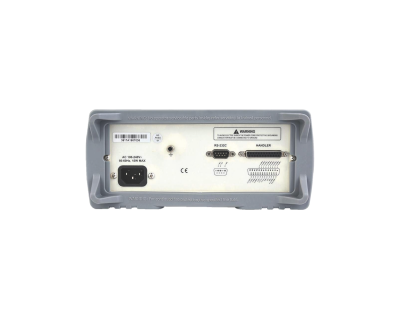

Built-in RS232/RS485/USB interfaces and Handler interface, GPIB interface optional.
Protocol: SCPI and Modbus.
1000V super shock protection.
