TL-3800 series Digital LCR Meter (Fixed Freq.)
TL-3801/10 series is a smart LCR tester with VFD display, large font, and user-friendly interface. It supports up to 10 test points, 10Hz–100kHz frequency range, and test levels of 0.1V, 0.3V, and 1V. TL-3820 series features a 3.5” TFT LCD, compact design with SMD technology, and a wider 50Hz–200kHz range (up to 37 points). It includes RS-232C, fixed output impedance options, and a built-in manager for automated testing and PC communication.
Categories :
Temperature Testers
Product Description:
Specifications:
Ordering Information:
| TL-3800 series New upgrade series, large font display, easy to read. TL-3801/10 series has high-preform processor, is an intelligent LCR tester with VFD display. Some functions of this model have been improved to have a maximum test frequency of 10 points, a frequency range of 50Hz~100kHz, and provide test levels of 0.1V, 0.3V and 1V. TL-3820 series is using high-performance processor and 3.5 TFT LCD display smart LCR Meter. And because of SMD technology, it is portable. We rely on highly skilled technicians, making the instrument more outstanding. It has a frequency range of 10Hz~200kHz, up to 37 points, fixed output impedance of 30Ω/50Ω/100Ω. It has user-friendly operation system, RS-232C interface and built-in manager to create automatic component testing system, communicate with computer and analyze test results. Meanwhile, tester has upper and lower limit alarm functionand communication transmission capabilities. With it's prefect function, superior performance and simple operation, it can fully meet the measurement needs of production. laboratories and R&D. |
Features

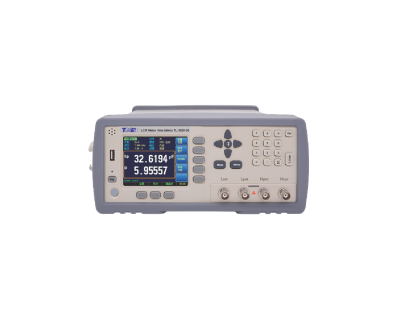

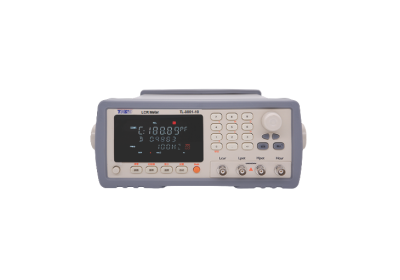

True color LCD (TL-3820 series) and VFD (TL-3801/10 series)
Full open circuit and short circuit correction function
Advanced comparison function (sequencing): Programmable P1~P9 9 Bins, Main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM etc.
Absolute deviation comparison method (ABS), relative deviation comparison method (PER) and Sequence comparison method (SEQ).
Support RS232C interface, optional RS485/USB or GPIB interface
SCPI protocol and Modbus protocol (TL-8320 series only)
( = For TL-3820-16/-37 series)
