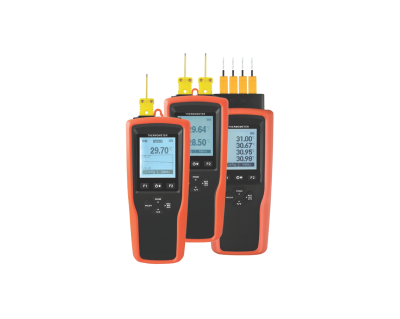

TM-80 series Thermocouple Thermometers
TM-80 series is with principle of thermocouple temperature measurement, which is an instrument used to measure temperature. This series has measurement the sample rate 2 times per second while single to 4 channels are working simultaneously with low power consumption, the resolution of this serires can be reached 0.01°C and the factory accuracy can be reached ±(0.3%|t|+0.40)°C. TM-80 series supports the most commonly K, T and J types of thermocouple probes and temperature graph can be displayed in single channel mode. TM-81L/82L/84L model are adds recording function on the basis of TM-80 series and can record all the data during temperature measurement. The files generated by the recording can be viewed directly on this machine or on any device that supports reading U disk. It can export files in a variety of different formats. TM-84X model adds recording function on the basis of TM-84 and it can be used in conjunction with PC software. Only TM-84X can record all the data while measuring, and user can view the statistics and temperature graph on the machine. |
Features
32-bit high-speed low power MCU
1/2/4 channels selection
PC real time monitor (TM-84X)
K, T and J type thermocouple supported
Resolution up to 0.01°C
Factory accuracy ±(0.3%|t|+0.40)°C
Accuracy up to ±0.1 after point calibration
Measuring range -200 ~ +1370°C
Display temperature graph.
Over-limit alarm supported.
Display data for maximum, minimum, average.
Sample rate 2 times/second.
Can record 20000 groups of temperature readings (TM-80L/84X)
Multiple power supply supported.
Large dot matrix LCD display.
