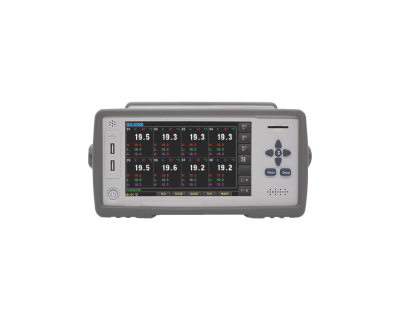

TT-2400 series Multi-channel Temperature Tester
| TT-2400 series Multi-channel temperature tester with high-performance ARM microprocessor control, 7-inch color LCD display, touch screen operation, easy to view temperature values, temperature changes Curves, histograms, etc., can collect multi-channel temperature data at the same time, super-super alarm and communication transmission, TT-2400 series can collect 64-channel temperature data, compatible with K/N/E/J/T/R/S/B Type thermocouple, fast response, stable data, and fault detection. Each channel can be set individually & independently corrected. The instrument supports USB communication, and data acquisition, analysis and printing can be realized through the standard computer software. Support USB disk storage for real-time storage of sampled data. Users can independently correct each data. |
Features
7 inches TFT true color LCD display.
Histogram display, graph.
Highest value, lowest value, average value display.
Standard RS232C interface and USB interface.
Automatic detection of broken couple.
Specified channel scan.
Standard USB disk interface, support for large-capacity storage devices.
Standard data acquisition software.
Test Function
TT-2400 series : uses fully isolated digital and analog signals, can be tested for live (isolated voltage 230Vrms, 330Vdc), safe and reliable.
TT-2400V series : uses fully isolated digital and analog signals, can be tested for live (isolated voltage 230Vrms, 330Vdc), safe and reliable.
TT-2400D series : uses fully isolated digital and analog signals (Channel segregation of voltage 1000V), safe and reliable.
TT-2400H series : uses fully isolated digital and analog signals (Channel segregation of voltage 2000V), safe and reliable.
TT-2400V series : adopts fully isolated digital and analog signals, can be tested on-line (isolation voltage 230V rms, 330VDC), support PT100, CU50, safe and reliable.
