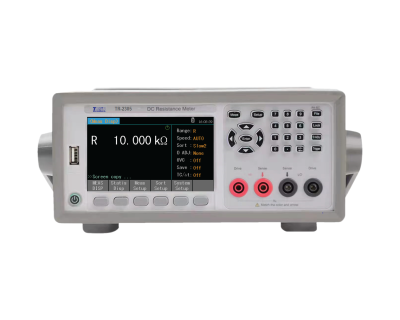

TR-2305 series DC Resistance Meter (1µΩ ~ 20MΩ)

TR-2305 series is New DC resistance meter, LCD display, easy to use, excellent performance, 32-bit CPU and 24-bit high-density SMD  technology. Leading role in testing relay contact resistance, interconnection resistance, conductor resistance, PCB resistance, temper
ature compensation and conversion functions, making the test free from the impact of ambient temperature, and offset voltage compensation effectively limit voltage of DUT. The potential difference of the automatic touch system in the production line can be greatly improved by realizing the ultra-high testing speed and output 3 signals to compare the results through the HANDLER interface.

Feature:

  Minimum resolution 1 μΩ to Maximum value 20MΩ, High accuracy 0.05%.
  Low resistance test mode can effectively protect the DUT.
  Temperature accurancy 0.2°C. and Zero ADJ can be wiped.
  Multiple measurement values ​​of R, LPR and T are combined.
  Temperature compensation (TC) and temperature conversion (Δt). Statistics function: Cpk, Cp.
  30 groups of parameter files can be saved and retrieved.
  Maximum sampling rate: 50 values/s.
  Management interface To take into account on-line operation.
  Offset voltage compensation (OVC).
  Screen data can be stored in U-disk.
  Simultaneous output of 10 bins of comparison results (OVER, PASS and beep).
  Data saving function brings convenience for recording measurement results.
  Software values ​​can be changed automatically by operating through USB host.
  Interfaces such as RS232, USB HOST, USB DEVICE and LAN (GPIB is optional).
