TES- 9700 series Standard AC&DC Hipot / Insulation Resistance Tester

TES-9700 series is a compact 2U AC/DC withstand voltage and insulation analyzer that integrates AC/DC withstand testing, insulation resistance, arc detection, and open circuit detection. It offers high accuracy, efficiency, and reliability in a lightweight design with rich interfaces.

Product Description :
Specifications :
Ordering Information :



TES-9700 series AC/DC withstand voltage and insulation analyzer integrates AC withstand voltage, DC withstand voltage, insulation resistance, arc detection, open circuit detection and other functions. The size of the whole machine is 2U/half width, and the depth is about 300mm. It is compact and light, accurate and efficient, reliable and stable and has rich interfaces.

 AC withstand voltage range 5kV/20mA, output capacity 100VA (Max)
 Insulation resistance measurement range 6000V/50GΩ.
 The whole machine adopts high-frequency power electronic conversion topology, stable output, extremely light.
 Built-in fast rise + slow rise test function in accordance with IEC60601/GB9706.1 standard.
 Built-in 100 test groups, each group supports 50 steps.
  Open and short circuit detection function: support OSC AC output detection mode.
 Arc detection function: built-in arc detection function based on waveform recognition, internationally unique, anti-interference, high accuracy.
 User authority setting: built-in password function to distinguish different levels of users.

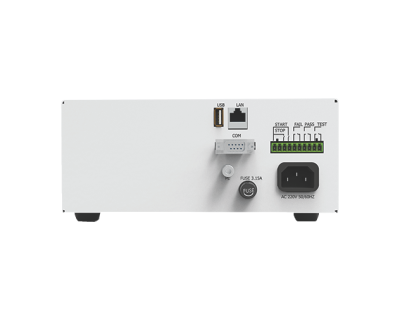

 External interface: standard RS232, PLC/HANDLER and other interfaces.
 Anti-electric shock protection function: built-in leakage protection function, response speed uS level.
 Quick test: test step delay <50mS.
 Support card expansion: TES97XX-8S supports direct card expansion of multi-channel serial scanning, etc.
 Optional information function: Add TES-107 information module, support internal data storage, data export, MES docking, barcode scanner, USB storage and other functions.

 Extremely Light

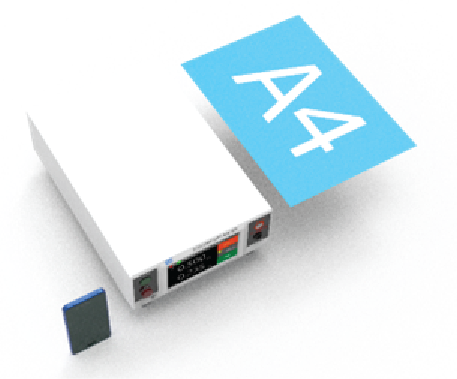

Built-in high-frequency power electronic conversion topology, the size and weight are greatly reduced. The length and width of the whole machine are equivalent to the area of ​​an A4 paper, and the weight of the whole machine is only 5.3 kg. Compared with traditional withstand voltage testers, Volume is compressed by half and the weight is reduced to 40%.



 Leakage fast power-off protection

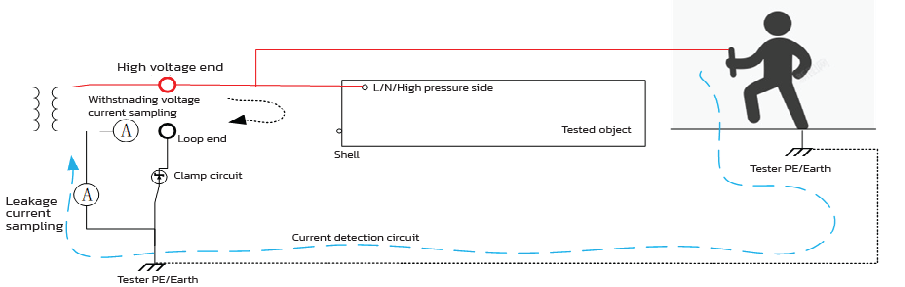

High voltage testing is dangerous to operators. TES-9700 series has a built-in leakage protection mechanism. When a user is electrocuted, the leakage current detection will be completed within milli-seconds and the voltage output will be cut off immediately to ensure safety.

 Open-short circuit detection function

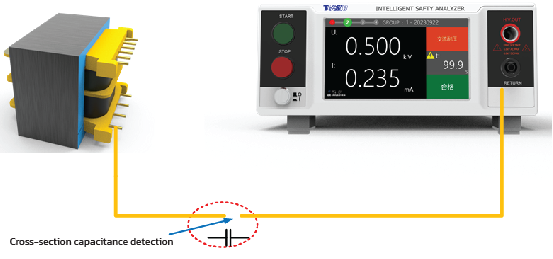

TES-9700 series uses low-voltage and high-frequency lossless technology to increase the output voltage frequency while reducing the voltage level. It detects the cross-sectional capacitance of the object under test and can complete the open circuit and short circuit determination of the output terminal within 0.15, effectively solving the problem that the
actual leakage current of the object under test is relatively small and is not suitable for high-voltage lossy testing in the short-circuit state.

 Arc Detection Function

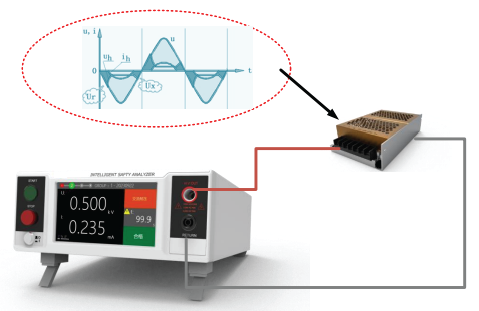

Arc is a self-sustaining discharge phenomenon caused by high voltage inside or on the surface of insulating materials. The BIN100 series can not only determine the discharge according to the arc level, but also record the discharge waveform under a certain frequency band.
