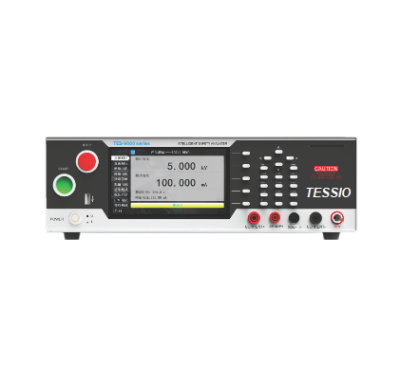

TES-9900 series Electrical Safety Comprehensive Tester
TES-9900 series is a new generation of electrical safety performance comprehensive analysis/tester series instruments launched by Tessio Technology. The products have the following features high speed, high accuracy and informatization, suitable for intelligent production line with fast-pace, hybrid, automation and informatization system.
TES-9000 series is a new generation of electrical safety comprehensive tester have characteristics AC and DC withstand voltage, insulation resistance, ground conduction resistance, resistance value, leakage current, operating power, low voltage start, arc detection, open circuit detection, etc.
There are multiple specifications such as single & three-phase, multi-channel and built-in power supply, applied to different industries such as communication, computer, consumer electronics, medical treatment, photovoltaic, new energy vehicles, power batteries, household appliances, commercial air conditioning, commercial kitchenware, lamp lighting, switching power supply, power electronics, motor marta, rail transit, aerospace, quality supervision and measurement, testing and certification, etc.
Regulatory compliance: Designed in accordance with the specific provisions of the electrical safety test in GB/IEC/UL and other relevant regulations, relying on the team's years of industry experience, simple /practical.
Powerful performance: high precision, 1% basic accuracy; touch color screen + mechanical key dual operating system, ARM processor, main frequency 480MHz, fast speed, large capacity, high resolution and rich interfaces.
Innovation make testing easier
Compared with the previous generation of safety testers and other traditional instruments, based on the principle of being smaller, lighter, more fashionable, and more in line with customer needs, the TES-9900/9800 series is completed in terms of high density, small size, high performance, strong experience and long life. A series of innovations make testing easier.

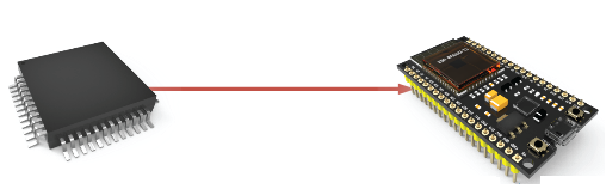

The previous generation of instrument generally use single-chip TES-9900 series adpots the new Cortex-M7 Industrial ARM
microcomputers or low-end ARM chip, mian frequency <200MHz. Processor, Main frequency upto 480MHz, stroage space nearly a
In-chip resource are scarce, slow speed few peripherals. hundred times larger,
rich in resources and strong perfermance

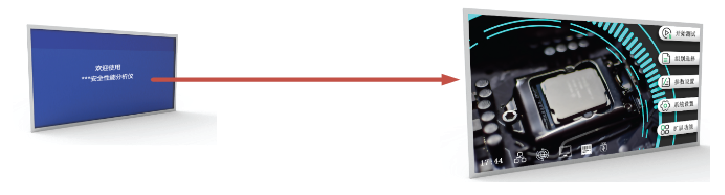

| The previous generation of ssafety comprehensive testers generally is low scores. The LCD screen is small size with a single color and a small wiewing angle, which brings inconvenience to use. | TES-9900 series adpots and a new 7-inch capacitive touch screen, high-definition full colour, easy to learn and use. |

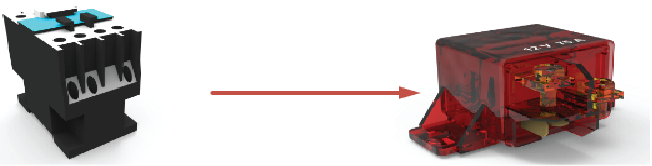

| Traditional safety gauges use AC contracts as switching devices, which do not meet the voltage level requirement of high voltage tests. The mechanical life is limited, the noise is high and the maintenance cost is high. | TES-9900 series adpots a new switching original abandoning the AC contactor, which is smaller in size and noise. |
Synchronous test of withstand voltage and ground resistance

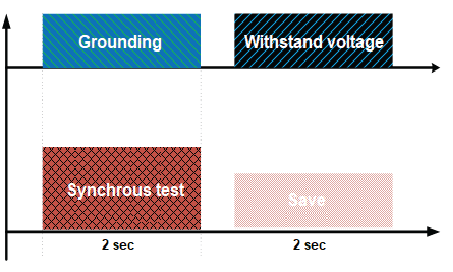

TES-9900 series built-in bi-amp technology outputs high voltage and high current synchronously, realizing the simultaneous test of ground on-resistance and AC/DC withstand voltage. As shown in the figure on the right, it can effectively save test time and solve the speed bottleneck.
Multi-network contact leakage current test

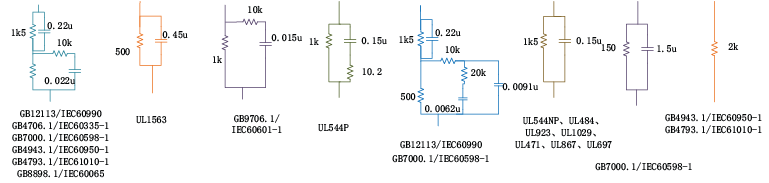

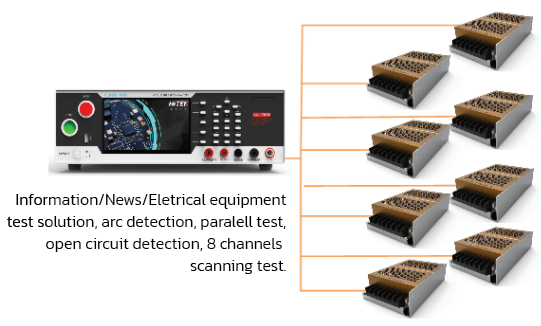

TES-9900 series can have up to 8 built-in simulated human networks, which meet the regulatory requirements shown in the figure below.
Open and short circuit protection function

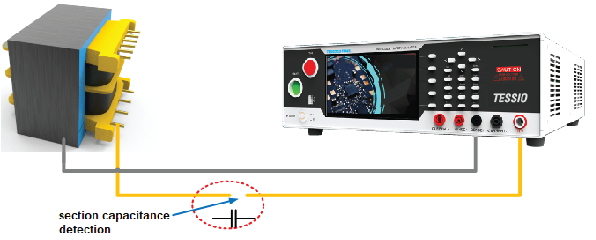

TES-9900 series uses low-voltage, high-frequency and non-destructive technology to increase the output voltage frequency while reducing the voltage level. It detects the cross-sectional capacitance of the measured object. It can complete the open circuit and short-circuit judgment of the output terminal within 0.1s, effectively solving the actual situation of the measured object The leakage current is relatively small and the short-circuit state is not suitable for high-voltage destructive testing.
DC Withstand voltage rapid discharge function
To ensure the safety of testers, TES-9900 series has a built-in residual voltage discharge function, which can complete the rapid discharge of the measured object, especially the capacitive component, within 50 milliseconds. At the same time, in order to solve the problems of sparking arcing and discharge life that are prone to occur during the discharge process.
TES-9900 series has a built-in arc extinguishing device and a precision timing frequency conversion discharge module to ensure the safety of testers while ensuring the life of the instrument.
Leakage fast power-off protection

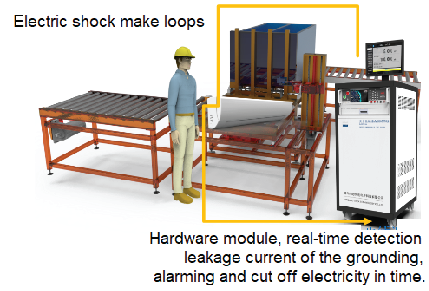

The high voltage test is dangerous to the operator. TES-9900 series has a built-in leakage protection mechanism. When the user gets an electric shock, the leakage current detection will be completed within millisecond and the voltage output will be cut off immediately to ensure safety. The instrument adopts hardware detection, fast speed, high stability and optional function chec module.
Arc detection function

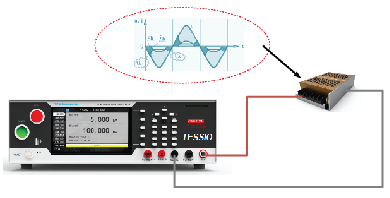

Arc is a self-sustained discharge phenomenon caused by high voltage inside or on the insulating material. TES-9900 series can not only judge the discharge according to the arc level, but also record the discharge waveform under a certain frequency band.
Information interface function

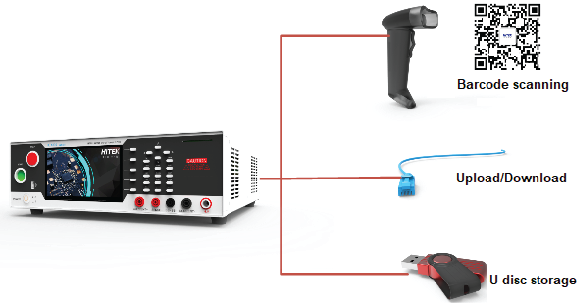

Support USB barcode gun, realize the functions of scanning code start, data storage, barcode binding, information upload and so on. After the scan code is started, the test data will be automatically matched with the current bar code, and the currently required test program can be
queried according to the identification field set by the user, automatically retrieved and completed the test and data storage.
Built-in spot check calibration module (Optional)

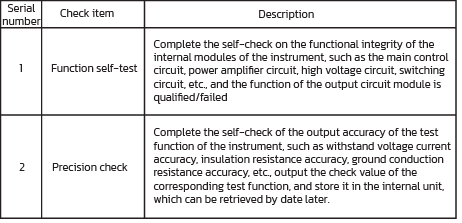

Many companies require that the use of equipment be checked every day when it is turned on. However, the general inspection device and the record sheet are separate from the test instrument, and multiple wiring and handwritten records need to be completed when used. TES-9900 series has a built-in inspection module, which can complete the accuracy inspection of the measurement level, complete the self-inspection diagnosis of the equipment status and accuracy status and store the inspection data internally. Users can complete data export through LAN port or U disk.
Electrical safety performance comprehensive test solution
TES-9900 series provides professional test solutions for different industries, with the following characteristics:
Mature solutions: Relying on years of industry experience and legal interpretation, whether its a laboratory or a production line, national or European standards, standard testing requirements or customized special requirements, the TES series provide targeted mature solutions.
Independent development: A series of test solutions, whether it is embedded development, mechanical design, electrical design, process, industrial design, and upper computer software, are all independently developed by our company and have independent intellectual property rights.
Excellent performance: Based on digital development ideas, the CPU of TES products has exceeded 400MHZ, which is much higher than the current industry's 100MHZ level; the double insurance combination of touch screen and mechanical keys is easy to learn and use, and adapt to the needs of different occasions.
Stable and reliable: On the basis of perfect electrical protection functions, a 30% design margin is provided in the design plan for stresses such as high temperature, high humidity, and vibration.
Big power 1/3 phase safety comprehensive test solution, comply with the test requirements in standard GB4706-2005. Suitable for 1/3 eletrical appliance. There are 2 types: desktop and cabinet version, basic accuracy is 1%, capacity is 30kVA, can be up to 120kVA.

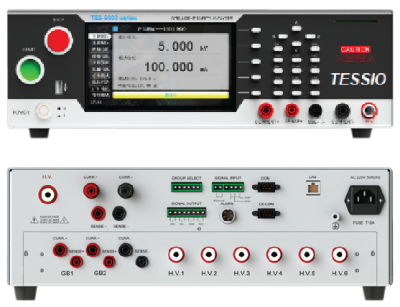

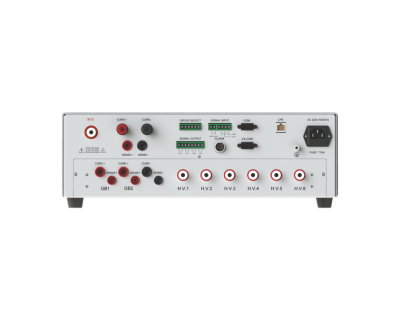

Front and Rear Panel of TES-9900 series
