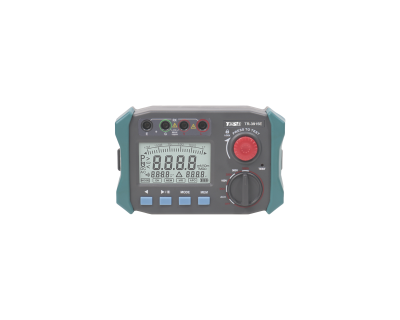

TR-3915 series ♦ Handheld Insulation Resistance Tester
Short Description
Digital insulation resistance testers with high output power and multiple test voltage levels. They support insulation testing up to 2,500V, insulation resistance measurement up to 100.0GΩ, and AC/DC voltage measurement up to 1,000V.
Product Description:
Specifications:
Ordering Information :
| TR-3915 series is digital insulation resistance tester is composed of medium-scale integrated circuits. This table has large output power and many output voltage levels. The maximum rated insulation test voltage is 2500V, and the maximum insulation resistance measurement value is 100.0G Ω. The DC voltage measurement range is 0~1000V and the AC voltage measurement range is 0~1000V. |
Features:
Function are Insulation resistance test, voltage test.
Rated voltage 100 ~ 2500V.
Insulation resistance at 100GΩ MAX.
Insulation resistance resolution rate 0.01MΩ.
Voltage range 0 ~ 1000V.
Voltage resolution 0.1V.
With 500 sets of data storage functions.
