TFC-TG series Two-phase Output Frequency Conversion AC Power Supply

TFC-TG series is 2-phase AC power source that simulates grid voltages from any country, delivering a high-purity, reliable sine wave. It is mainly used in household appliances—especially in the Americas and Europe—such as electric/gas ovens and large water heaters, which require output power over 15 kVA.

Product description:
Specifications:
Ordering Information & Accessories:

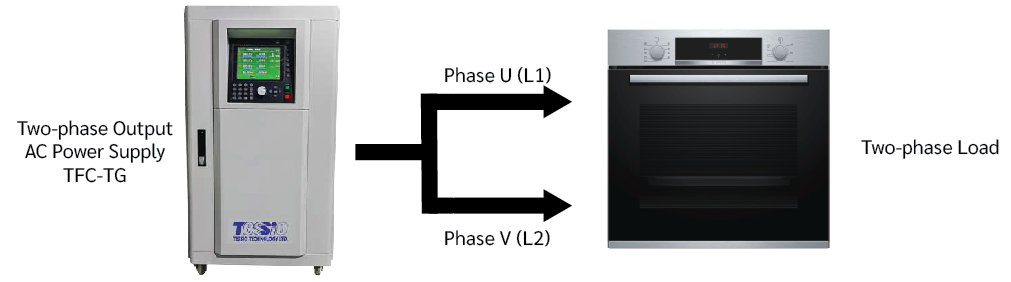

TFC-TG series is a 2-phase AC power source capable of simulating grid voltages from any country worldwide. It delivers a highly pure and reliable sine wave to users. This type of power supply is mainly used for household appliances, particularly in Europe and more commonly in the Americassuch as ovens that use both electric and gas systems, and large water heaters. These appliances typically require an output power of more than 15kVA.

  Advanced product design concept featuring modular design, digital control technology, high precision, fast response, intuitive human-machine interface, and compliance with industrial standards.
  Utilizes dual-phase isolated control, supporting 0100% load imbalance.


  Equipped with precision inrush current protection technology, capable of withstanding large surge currents and 2-second overcurrent events.

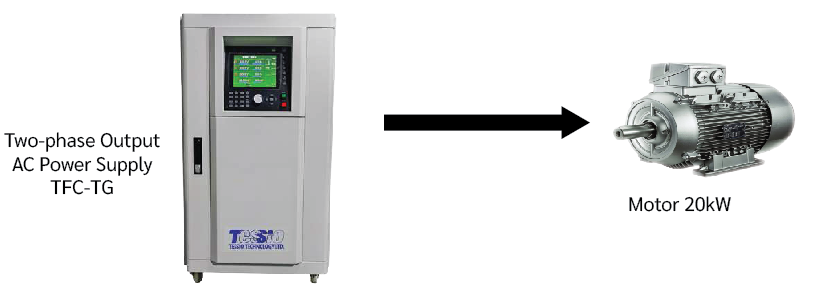

  Ideal for surge-type equipment like motors and compressors; capacity can be appropriately reduced to lower costs. For example, a 60kVA power supply can reliably start a 20kW motor.


  Includes a soft-start function with adjustable timing, suitable for high inrush current loads like motors.
  Fast dynamic response time, with voltage reaction occurring within 20ms.
  Output voltage and frequency are adjustable during startup, enhancing flexibility.
  8-inch color LCD display with attractive design and user-friendly operation, featuring digital keys, function buttons, rotary knob, etc., for modular operation.
  Automatic keyboard lock function, locking after a set time to prevent accidental touches or misuse.
 Voltage range: 0.0150.0, 150.1300.0V or 0.0300.0V; full high-end power output. Frequency range: 45.0065.00Hz, resolution: 0.01Hz.
  Comprehensive measurement functions for voltage, current, peak current, frequency, active power, apparent power, power factor, voltage crest factor, etc.
  AI-Monitor function provides real-time monitoring of internal voltage, current, temperature, and alerts immediately in abnormal conditions for fast handling.
 Black-box function automatically records operational parameters during abnormal conditions for easy maintenance and traceability.
 Core components are sourced from internationally renowned brands, ensuring reliable quality.
  Key indicators follow a multi-module design; voltage stress, current stress, and thermal buildup are tightly managed for high reliability and long service life.
  Supports standard interfaces: RS-232, RS-485, with GPIB and Ethernet as optional accessories.
