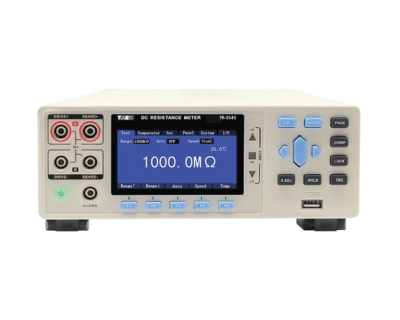

TR-3545 High Precision DC Resistance Meter (0.01µΩ ~ 1200MΩ)

TR-3545 is precision DC resistance meter, one of the most accurate DC resistance testers in the industry. The TR-3545 series has a 6.5-digit display, a minimum resolution of 0.01μΩ, and a basic accuracy of 0.01%. It is quite suitable for checking motor windings, inverters, and other areas that require high-resolution resistance measurements. It also has fault detection of test cables. High speed and very short measurement cycles. With a maximum sorting speed of 2.2ms, it ensures high-speed and reliable sorting every time. The TR-3542 series is a compact version of the TR-3545; the TR-3545 has a higher configuration at a higher price.

 High accuracy of 0.01% with a resolution of 0.01µΩ, a maximum test current of 1A.
 Resistance measurement range of 0.01µΩ ~ 1200MΩ and temperature of 0 ~ 99.9°C.
 Thermo-electric compensation (OVC) and low power resistance measurement.
 Low power resistance measurement.
 Test cable open circuit detection function, suitable for OS inspection of automatic production lines D/A output.
 Analog output interface: 0 ~ 1.5V.
 With thermal potential compensation function (OVC).
 Support multi-channel testing for TR-3545 (optional multi-channel scanning card).
 Supports interfaces such as RS-232, External I/O, Ethernet, temperature test, analog input/output, ideal for supporting automatic equipment to perform automatic testing.
