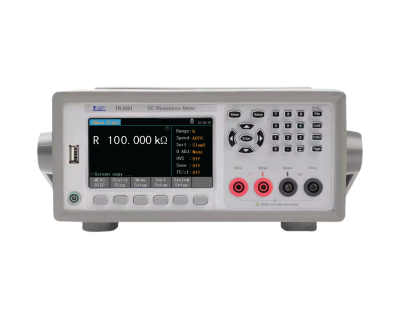

TR-2301 series High-Precision DC Resistance Meter (0.1µΩ ~ 2GΩ)

TR-2301 series is high-precision resistance tester with 5½-digit LCD, 0.01% resistance accuracy, wide test range (0.1μΩ–2GΩ), temp. sensing, smart functions, data logging & multi-level result output.

Product description:
Specifications:
Ordering Information:



TR-2301 series is 4.3-inch 24-bit true color LCD screen maximum sampling rate of 100 times/second, 5½digit high-resolution  measurement result display, maximum resistance accuracy 0.01%, test range 0.1uΩ up to 2GΩ, temperature accuracy: 0.1°C; intelligent detection of test state faults; R, LPR, T and other test function combinations support PT100 and PT500 temperature sensors, low voltage test mode to effectively protect the DUT, temperature compensation function (TC), offset voltage compensation function (OVC), user self-calibration function (Zero : 0 ADJ) statistical function, providing CpK, Cp and other statistical quantities, screenshot function, data recording and parameter saving function, simultaneous output of 10 level comparison results (out of limit, qualified and alarm), Handler interface for online operation.



Features

 4.3 inch 24-bit true color LCD screen 480×272 resolution.
 The maximum sampling rate is about 100 times/second
 5½ Digit high-resolution measurement result display
 Test range up to 2GΩ
 Highest resistance accuracy: 0.01%, minimum resolution: 0.1uΩ
 Basic temperature accuracy: 0.1°C
 Intelligent detection of test status faults
 R, LPR, T and other test function combinations
 Supports PT100 and PT500 temperature sensors
 Offset voltage compensation function (OVC)
 Low voltage test mode, effectively protecting the device under test
 Temperature compensation function (TC)
 Statistical function, providing statistics such as CpK, Cp, etc.
 User self-calibration function (0ADJ)
 Screen capture function, data recording and parameter saving function

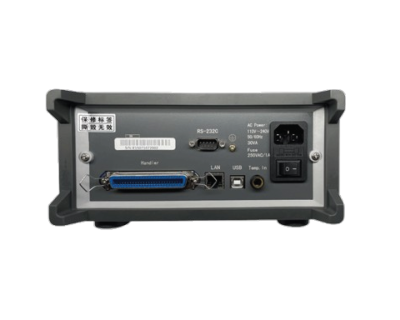

 Handler interface is used to implement online operations
 Simultaneously output 10-level comparison results (out of limit, qualified and alarm)
 Handler interface is used to implement online operations
