Three-phase Output Frequency Conversion AC Power Supply
TFC-T series is single-phase AC variable frequency power supply can simulate the voltage of power grids in various countries around the world, providing customers with high-purity and high-reliability sine wave power output and is professionally used in home appliances, small appliances, motors, certification agencies, medical equipment, lighting and other fields to meet the requirements of product design and development, production line testing, quality assurance testing, aging life testing, voltage and frequency conversion and other testing requirements.
Product design, the use of modular design and digital control technology, high stability, high precision, fast response, man-machine interface and operation in line with industry habits.
Strong carrying capacity to meet the aging needs of home appliance production line.
The use of accurate anti-impact technology, can withstand the load of large current impact, 3 times the rated current can mature 2s, especially suitable for motor, motor and other impact equipment.
With soft start function, and soft start time can be set, suitable for motors and other equipment frequent starting occasions, can be set according to the working condition, soft start time, reduce the impact current.
The dynamic response speed is fast, and the voltage mutation reaction time is within 20ms.
The output voltage and frequency can be adjusted under the starting state, and the use is flexible.
8-inch color screen, all operations can be achieved through the touch screen, exquisite appearance, convenient operation and equipped with digital keys, function keys, knobs, etc., diversified operation.
With Auto-Lock function, timed to automatically lock the keyboard to prevent miscontact.
Voltage range design: 0.0 ~ 150.0V, 150.1 ~ 300.0V or 0.0 ~ 300.0V, high grade and low grade can be full power output; Frequency output range 45.00 ~ 65.00Hz, resolution 0.01Hz.
The measurement function is complete, can measure voltage, current, current peak, frequency, active power, apparent power, power factor, voltage peak factor and other power parameters.
With the "black box" function, real-time monitoring of internal voltage, current, temperature and other parameters, abnormal conditions immediately alarm and automatically record operating parameters, convenient for later viewing and maintenance.
Communication interface standard RS232, optional RS485, ETHERNET, GPIB and analog control, etc.
Type Recommendation
Overload capability makes it easier to start motors, compressors and other equipment
TFC-T series adopts precise current control technology, which can with stand the impact of 3 times the rated current for 2 sec and easily scope with 5-10 times the impact current at the start of the load such as motors and compressors.

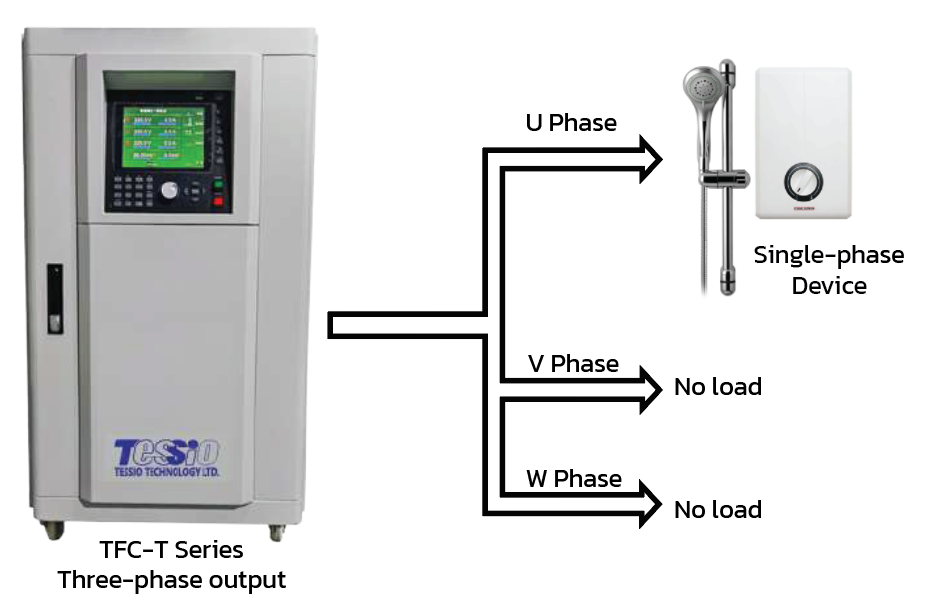

Three-phase decoupling control, three-phase independent load
Three phase voltage of TFC-T series adopts independent channel decoupling control, independent regulation and no influence on each other, which can adapt to 100% load imbalance.
Online frequency regulation, with digital keys, one step in place, seamless switching, accurate and fast.
TFC-T series uses digital synthetic DDS, which allows voltage and frequency values to be set via digital keys. Voltage & Frequency respond instantaneously without transition, making the test accurate and efficient.

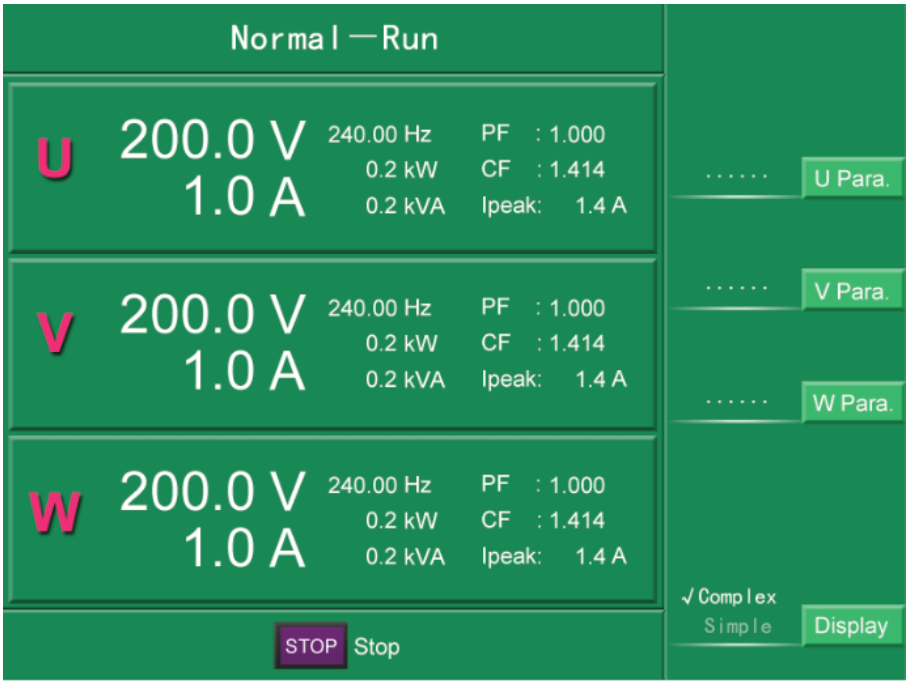

8 inch color screen, operation experience upgrade.
TFC-T series is 8" color screen, all operations can be done by touch screen, intuitive, friendly and efficient.
Black box function, real-time monitoring, improved maintenance efficiency.
TFT-C series built-in "black box" function enables real-time monitoring of power operation data and timely recording of input and output parameters in case of abnormal operation, making maintenance easier.
