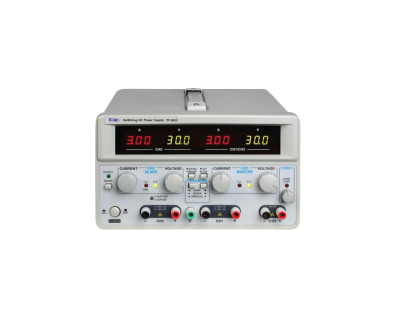

TP-3606 ♦ Triple-output Switching DC Power Supply
Quantity
Short Description
It is a 375W switching DC power supply with three independent outputs and dual-range CH1/CH2 output (30V/6A or 60V/3A). Its high power density and flexible voltage/current output support a wide range of testing applications. Features high efficiency, low noise, multiple protection functions and a compact, reliable design.
| TP-3606 is switching mode DC power supply provides 375W output capacity with three independent outputs and CH1/CH2 dual range cutput (30V/6A or 60V/3A), which accommodates a wide range of applications. On the basis of fixed output capacity, it enables output voltage or current to the maximum. With high power density and high conversion efficiency. multiple protections, high reliability, low noise and compact, TP-3606 is completely adequate for satisfying mainstream power supply demands. |
Features
◆ CH1/CH2 independent adjustable outputs with dual ranges 0-30V/0-6Ax2, 0-60V/0-3Ax2
◆ CH3 0.1-5V/3A, adjustable output
◆ Constant voltage and constant current operations, auto CV and CC switch
◆ Auto Series/Parallel tracking operations, providing flexible output 30V/12A, 60V/6A or 120V/3A
◆ High power conversion efficiency, improving the power efficiency by 25%
◆ Manual and remote ON/OFF control
◆ Preset function, setting of voltage and current with output open circuit
◆ Manual over voltage protection
◆ Over voltage, over load, over temperature and reverse polarity protections
◆ Power source AC115V/230V auto switch
◆ Fan speed control circuit, minimizing fan acoustic noise
◆ Compact design, light weight
◆ Dual-color four digital panel meters
