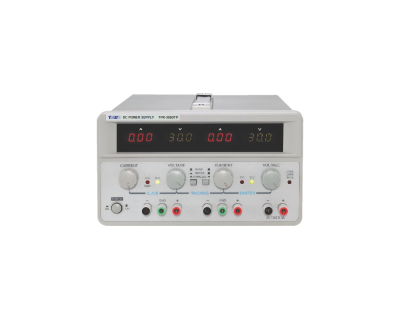

TPR-300D series ♦ Triple-output DC Power Supply
Quantity
Short Description
Triple-channel linear DC power supplies delivering 195W–315W with high regulation and low ripple/noise. They support series and parallel operation, intelligent cooling, output ON/OFF control, and preset voltage/current protection. Ideal for powering operational amplifiers, logic circuits, push-pull stages, and other laboratory or development applications.

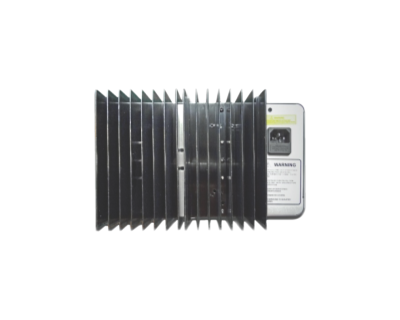

| TPR-300D series are linear DC power supplies with 3 channels, 195W to 315W output. In and current operations, the power supply provides high regulation and low ripple & noise. Auto s operations double output voltage and current. Heat sink and automatic cooling fan control give suffic power supply and minimize fan noise. The output ON/OFF control and preset voltage & current function supply and related loads from unexpected damages. This series are widely used powering operational amplifier, push pull stages, logic circuit and definition systems. |
Features
Two independent adjustable outputs 0~30V/0~3A x2, 0~30V/0-5A x2, one fixed output 5V/3A x1
Constant voltage and constant current operations, auto CV and CC switch
Low ripple and noise, low temperature drift
Auto Series and Parallel tracking operations
Output ON/OFF control
Preset function, setting of voltage and current with output open circuit (TPR-DTP series)
High efficiency, high power density
Over load and reverse polarity protections
Dual-color four digital panel meters
