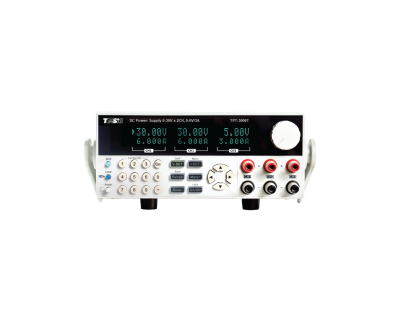

TPT-T series Triple-output Programmable DC Power Supply (198 ~ 540W)
A true triple-output programmable DC power supply delivering up to 3×30V/6A or 3×60V/3A simultaneously with 1mV/1mA resolution.Supports independent, series/parallel, and tracking modes, with built-in SENSE compensation and front/rear outputs.
Equipped with RS232 and USB interfaces, SCPI/MODBUS support, PLC programming, and quiet intelligent fan control.
Product Description:
Specifications:
Ordering Information:
| TPT-T series are true 3-channel programmable power supplies with better consistency in 3-channel output voltages (e.g., TPT-6003T offers 0-60V for all 3 channels), current from 0-3A to 0-6A, ideal for high-requirement synchronous testing. Core highlights include high precision and wide range: voltage resolution 1mV, current resolution 1mA, load regulation 0.01%+3mV, ripple 2mVrms, ensuring stable output. Supporting series/parallel and synchronous modes, CH1 and CH2 can combine to expand power for stringent testing needs. Equipped with 40 groups of parameter storage and timed output (0.1-99999.9 seconds), a VFD display clearly shows 3-channel data. Standard RS232/USB communication compatible with SCPI/Modbus facilitates remote control. An intelligent fan controls temperature; dimensions are 255×110×475mm, suitable for precision electronic R&D and high-end testing systems. |
Features
This series programmable DC power supplies 3 channels display voltage and current at the same time, and all can be adjusted.
Intelligent temperature control fan to reduce noise.
Can be used in series, parallel or synchronous.
Low ripple and low noise.
Software monitoring and correction can be carried out through the computer.
Remote measurement function (SENSE) to compensate for the voltage drop on the line Timed output time (0~99999.9 seconds).
Output with switch control.
40 sets of set data can be saved and quickly stored and recall.
RS232 and USB interfaces are standard, support SPCI protocol and MODBUS protocol and can be controlled by PLC.
