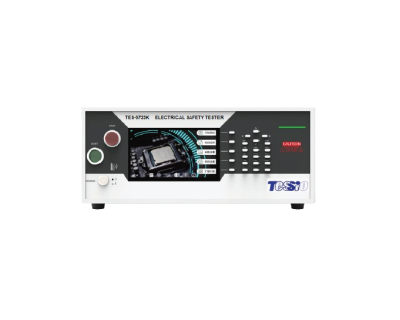

TES- 9700K series 10kV~20kV Withstanding Voltage Tester w/ IR function
TES-9700K series is 10kV/20kV withstand voltage and insulation tester is a three-in-one instrument (ACW/DCW/IR) that offers high voltage (supports 20kV AC and DC outputs), compact size (4U high-density housing) and high accuracy (withstand voltage accuracy up to 1%, insulation range up to 50GΩ).
| TES-9700K series is Ultra-high voltage at 10kV/20kV withstand voltage and insulation tester is a three-in-one instrument (ACW/DCW/IR) that offers high voltage (supports 20kV AC and DC outputs), compact size (4U high-density housing) and high accuracy (withstand voltage accuracy up to 1%, insulation range up to 10GΩ). |
Features:
Three-in-one : ACW/DCW/IR function.
High voltage supports 10KV/20kV AC and DC output.
4U small size high-density body.
High precision: Withstand voltage accuracy can reach 1%.
Insulation resistance measurement range 2500V/50GΩ.
Built-in 100 test groups, each group supports 50 steps.

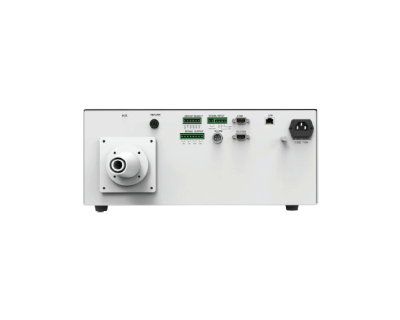

Rich interface are RS-232, PLC/HANDLER, USB (standard) and LAN, GPIB (option).
Open Short Circuit Detection Function

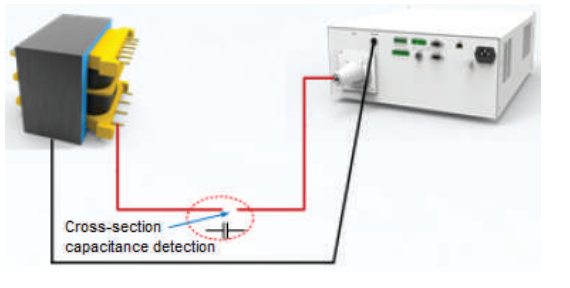

The series is utilizes low-voltage, high-frequency, lossless technology to increase the output voltage frequency while reducing the voltage level. It performs cross-sectional capacitance detection on the device under test (DUT), and can determine open-circuit and short-circuit conditions at the output terminal within 0.15 seconds. This effectively solves the problem that the actual leakage current of the DUT is relatively small, and high-voltage destructive testing is unsuitable under short-circuit conditions.

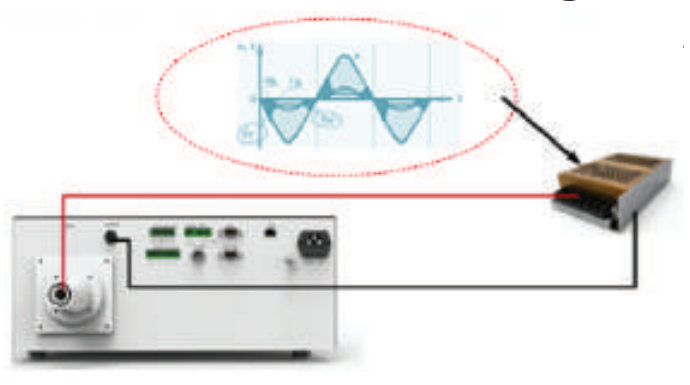

Arc Detection Function
Electric arc is a self-sustaining discharge phenomenon generated inside or on the surface of an insulating material due to high voltage. This series can determine the discharge level based on the arc level.

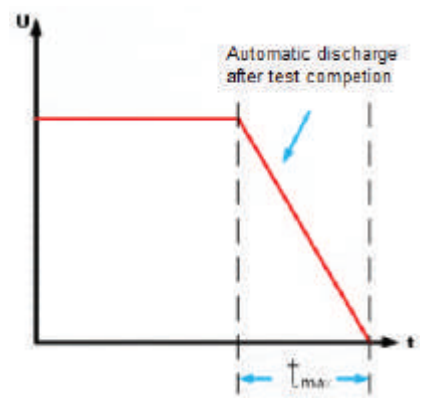

DC Voltage Rapid Discharge Function
To ensure the safety of test personnel, this series has a built-in residual voltage discharge function, which automatically and quickly discharges the test object, especiall capacitive components.
Rapid Power-off Protection For Leakage Current Function
High-voltage testing poses certain risks to operators. It has a built-in leakage protection mechanism. If a user is electrocuted, the leakage current will be detected within ms and the voltage output will be cut off immediately to ensure safety.
The instrument uses hardware detection, which is fast and stable, and can be equipped with a functional inspection module.
Inforamtion Interface Function
It supports USB barcode scanners, enabling functions such as barcode scanning activation, data storage, barcode binding and information uploading. After scanning activation, test data is auto-matched with the current barcode and the system can query the required test program based on user defined recognition fields, automatically
retrieve and complete the test and store the data.

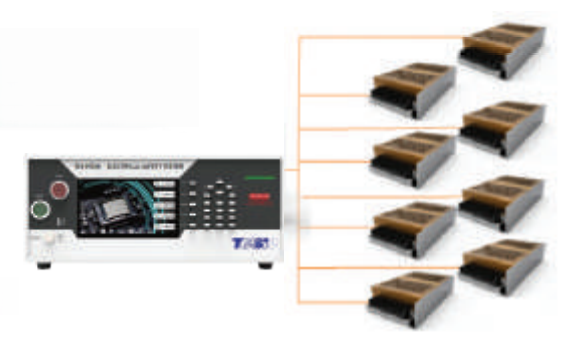

Optional Multi-channel Scanning card
Information/Information/Power Electronic Equipment Testing Solution with Arc Detection, Parallel testing, Open/Short circuit detection and eight channel scanning testing.
