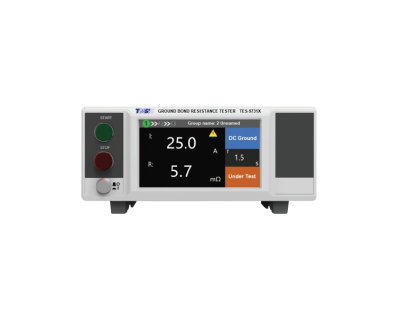

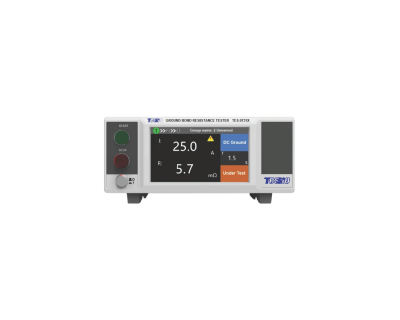

TES-9731X AC Ground Bond Resistance Tester (2% Accuracy)
A compact AC grounding resistance analyzer with 200 VA output, four-terminal testing, and constant current output. With high accuracy and reliability, it meets strict testing needs in EVs, electronics, aerospace, appliances, and medical equipment.
Product Description :
Specifications :
Ordering Information :
| TES-9731X is AC grounding resistance analyzer has 200VA output capacity, AC grounding constant current output, four-terminal test, the whole machine size is 2U/half width, depth is about 275mm, compact and light, accurate and efficient, reliable and stable, rich interfaces, can meet the strict test requirements of new energy vehicles, electronic components, power electronics products, aerospace products, household appliances, audio and video equipment, medical equipment, etc. |
Features
Basic accuracy 2%.
Output current 32A AC, test resistance 0.001 ~ 0.600Ω
The whole machine adopts high-frequency power electronic conversion topology, stable output, extremely light.
User authority setting: built-in password function distinguishes different levels of users.
External interface standard RS232 and USB, LAN and other interfaces are option.

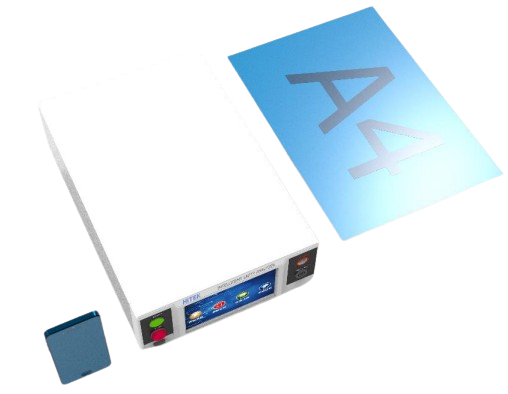

Extremely Light
Built-in high-frequency power electronic conversion topology, the size and weight are greatly reduced. The length and width of the whole machine are equivalent to the area of an A4 paper, and the weight of the whole machine is only 4.5 kg.
