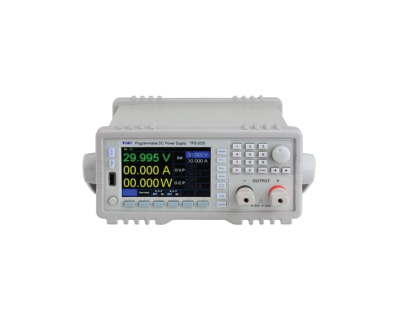

TPS-series Programmable Switching DC Power Supply (300-900W)

TPS-series is high accuracy programmable DC power supply with single output. Using MPU control, RS232/RS485/USB interface for PC control, TPS-Series facilitates auto test and auto control. The commands are compliant with SCPI commands. Users can easily develop programs to facilitate different applications in auto test and auto control. Users can also store or recall data via the USB host on front panel. 4.3-inch TFT LCD display gives full display for parameters and output waveforms. Digital input fulfilled by rotary dial and keypad input makes input fast and accurate. Voltage and current regulations by software, avoids human error and makes more accurate.

  Features
  High accuracy, high resolution.
  5 Digits 4.3-inch TFT LCD display.
  Load resistance measurement.
  High speed rotary dial and keypad input.
  CV/CC priority setup
  Remote sense function.
  Current limit and voltage limit alarm.
  USB host interface for data storage and recall from external USB flash driver.
  Battery curved charge mode.
  List mode function, 300 sets save & recall for voltage, current and time set up.
  Data record software.
  Multiple protections: OVP, OCP, OLP, OTP and reverse polarity protections
Ram output.
  Support SCPI & ModBus-RTU commands, support Labview
  Communication interface: RS232, RS85 and 0-5V analog interface.

 Applications / Functions

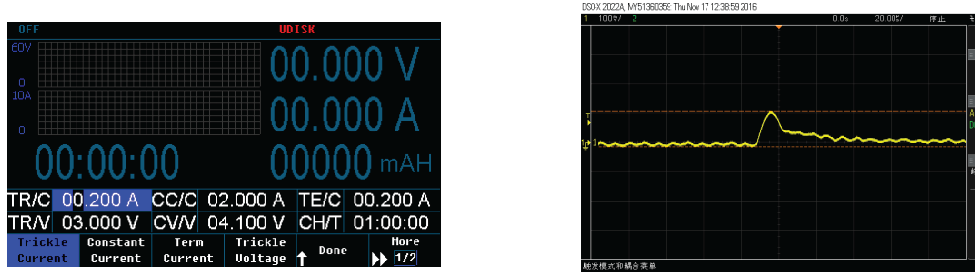

 Battery curved Charge                                                                     Fast Translent Response Time

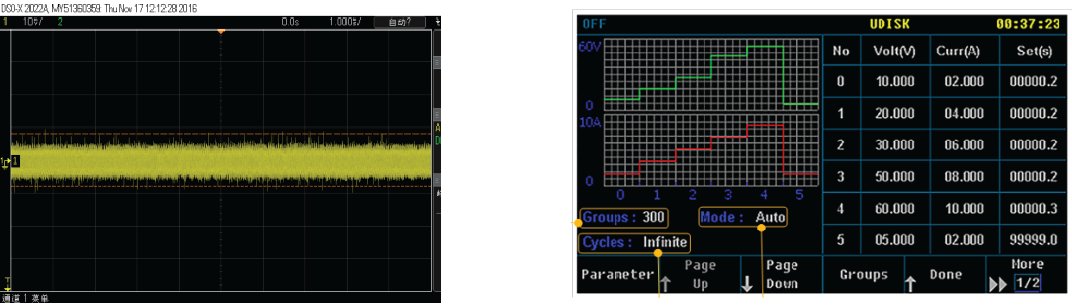

  Low Ripple, Pure Output                                                       Timing Output

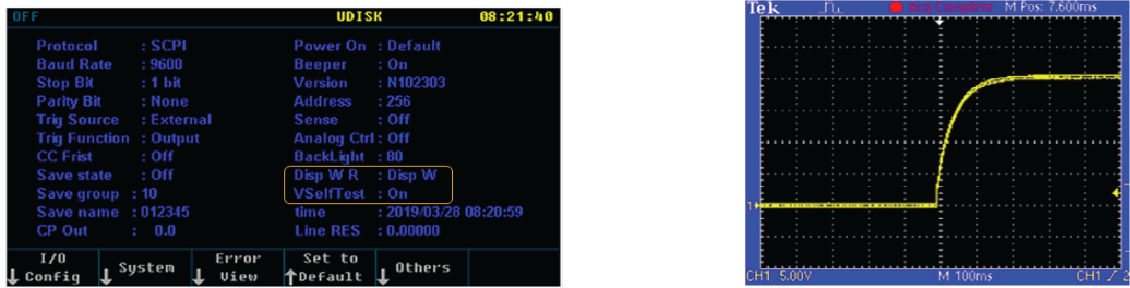

  Low Resistance  Measurement & Voltage Self Check                          No Overshoot

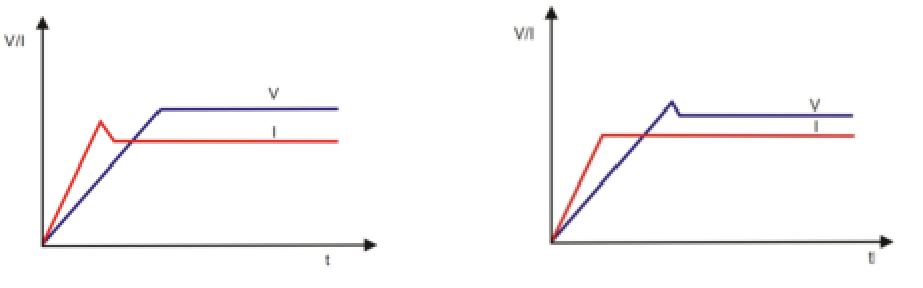

 CC First

 Ramp Output                   Rack Mount Compatible                Remote Sense
