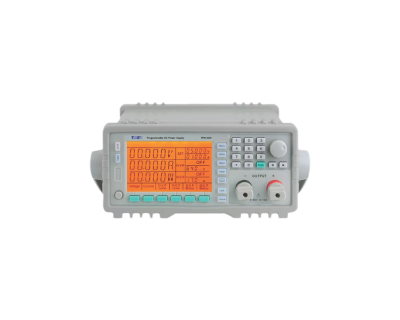

TPW-series Programmable Switching DC Power Supply (300-900W)

TPW-series is high accuracy programmable DC power supply with single output. Using MPU control, RS-232/RS-485/USB interface for PC control, TPW-Series facilitates auto test and auto control. The commands of TPW-Series are compliant with SCPI commands. Users can easily develop programs to facilitate different applications in auto test and auto control. Digital input fulfilled by rotary dial and keypad input, fast and accurate. Voltage and current regulations by software, avoids human error and makes the PPW series more accurate.

Features

 High accuracy, high resolution.
 High speed rotary dial and keypad input.
 Remote sense function.
 Battery curved charge mode.
 Support SCPI & ModBus-RTU commands, support Labview Data record software.
 List mode function, 300 sets save & recall for voltage, current and time setups.
 Communication interface: RS232 at default, optional RS85 and 0-5V analog interface.
 5 Digits 4.3-inch backlit Segment LCD display.
 Load resistance measurement.
 CV/CC priority setup.
 Multiple protections: OVP, OCP, OLP, OTP and reverse polarity protections.

 Applications / Functions

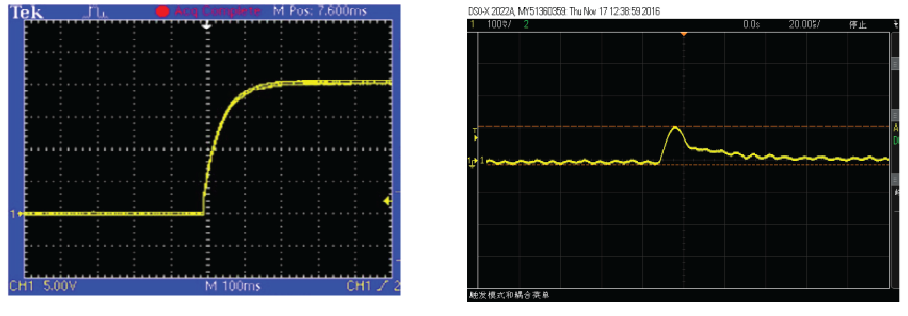

 No Overshoot                                                                                  Fast Translent Response Time

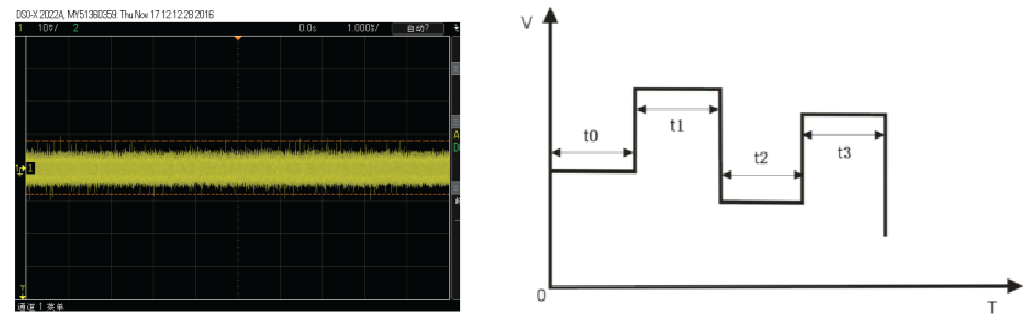

    Low Ripple, Pure Output                                                           Timing Output

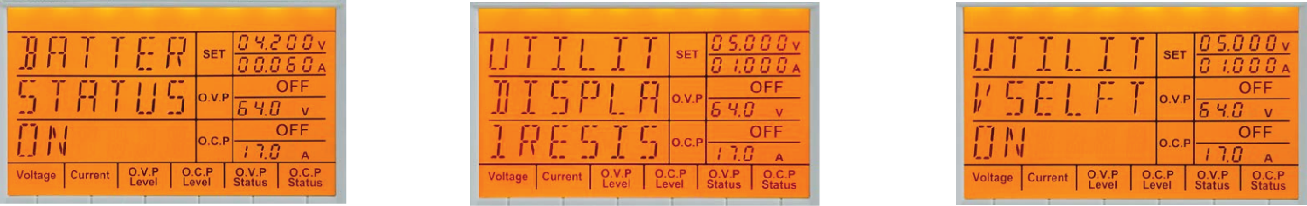

  Battery curved Charge                                       Low Resistance  Measurement                                Voltage Self Check

 Remote Sense
 Rack Mount Compatible
