TR-3930 series ♦ High-Insulation Resistance Meter (500Ω~9.9PΩ)
Quantity
Short Description
High-insulation resistance tester with 6 test ranges and adjustable output up to 1000 V. It measures 500 Ω to 9.9 PΩ with max display of 99999. Ideal for testing insulation resistance, leakage current, surface resistance, and volume resistivity of electronic components, materials, and cables.

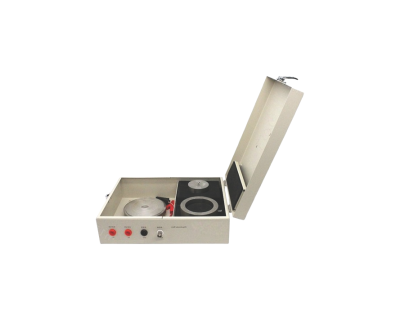

| TR-3930 series is high-insulation resistance tester that is controlled by high-performance processor which can be used in various electrical industry, electronic parts, and electronic devices. 7 range test, output voltage can be arbitrarily set to 0~1500V at 1V resolution. It can test resistance of 500Ω~9.9PΩ, the maximum display 99999. High Insulation Tester is used to measure the insulation resistance and leakage current of various electronic components, equipment, dielectric materials, wires and cables; Supporting electrode box can test the surface resistance and volume resistivity of materials. |
Features:
Using ARM high-speed sampling control, high accuracy, fast response; Accuracy and test range of voltage, current and internal resistance surpass similar products, providing higher standards for product testing.
Integrate all functions of DC power supply, DC electronic load and AC resistance tester
Large-screen LCD display, Chinese and English switching, rich and clear display content.
It can test the AC internal resistance of the battery as well as the DC internal resistance of the battery to meet the needs of different types of internal resistance testing.
With standard RS232 interface, LAN communication port, standard SCPI communication protocol, meeting the needs of automated testing customers.
The internal resistance range is 30mΩ～3Ω, the minimum resolution is 1μΩ, and the maximum display is 31,000 counts; the voltage range is 6V～30V, the minimum resolution is 0.1mV and the maximum display is 60,000 counts.
Comprehensive test functions: battery activation, voltage internal resistance, charge test, overcharge test, DC internal resistance, discharge test, over discharge test, short circuit test, recovery test, resistance R1/R2, I2C voltage, I2 C communication.
Application
TR-3930 series comprehensive battery tester is used to test various lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, button batteries, cylindrical batteries, soft pack batteries
Comprehensive battery performance test, charge and discharge capacity test, AC and DC internal resistance test, overcharge and over-discharge test, I2C test, etc.
Lithium battery
Cell phone battery
Power tool battery
Mobile power battery
