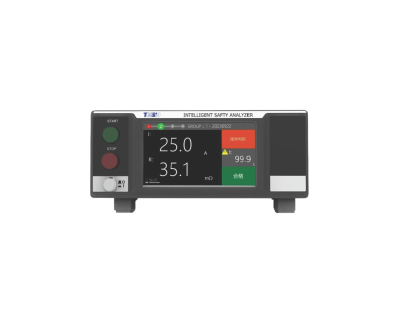

TES-9733 AC&DC Ground Bond Resistance Tester (40A/600mΩ)
| TES-9733 is AC & DC grounding resistance analyzer has 200VA output capacity, AC and DC grounding dual-purpose constant current output, four-terminal test, the whole machine size is 2U/half width, depth is about 300mm, compact and light, accurate and efficient, reliable and stable, rich i nterfaces, can meet the strict test requirements of new energy vehicles, electronic components, power electronics products, aerospace products, household appliances, audio and video equipment, medical equipment, etc. |
Features
Basic accuracy 1%.
Output current 32A AC | 40A DC, test resistance 0.001 ~ 0.600Ω
The whole machine adopts high-frequency power electronic conversion topology, stable output, extremely light.
Built-in 100 test groups, each group supports 50 steps.
User authority setting: built-in password function distinguishes different levels of users.

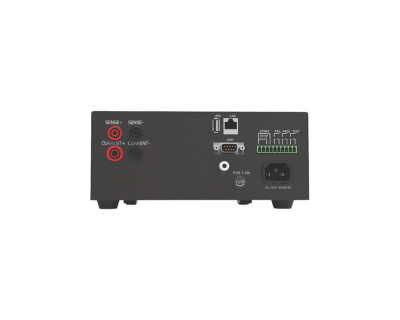

External interface: standard LAN, RS232, USB and other interfaces.
Support card expansion: support direct card expansion of multi-channel serial scanning, etc.
Quick test: test step delay <50mS.
Informatization function: support barcode scanner, U disk storage and other peripherals.

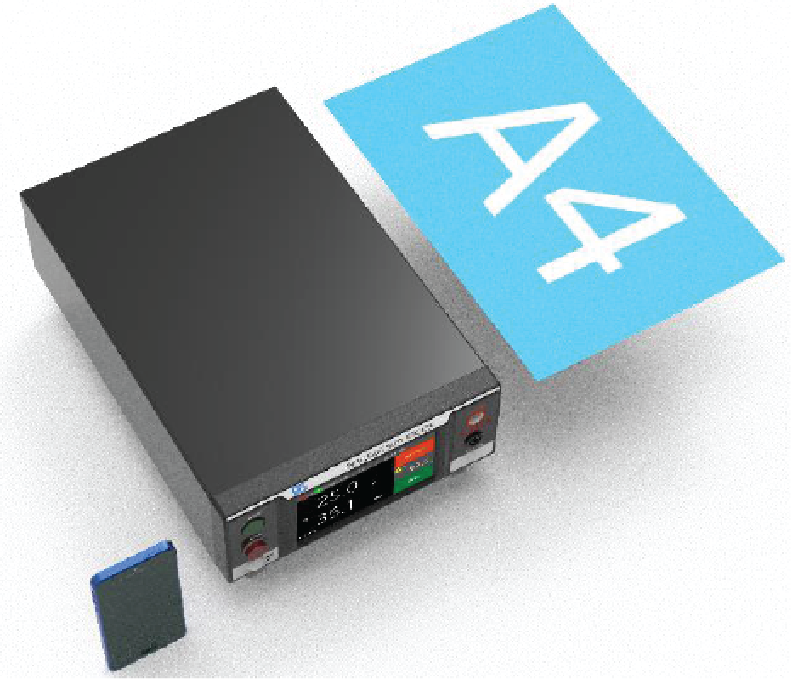

Extremely Light
Built-in high-frequency power electronic conversion topology, the size
and weight are greatly reduced. The length and width of the whole machine are equivalent to the area of an A4 paper, and the weight of the whole machine is only 4.5 kg.

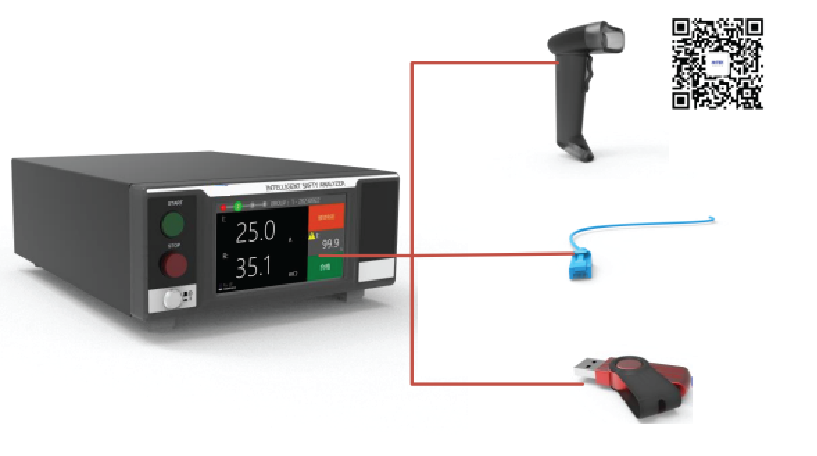

Information Interface Function
Supports USB barcode guns, realizing functions such as code scan start, built-in data storage, barcode binding, information upload, etc.
After code scanning start, the test data will automatically match the current barcode, and can query the currently required test program
according to the identification field set by the user, automatically call it, and complete the test and data storage.
