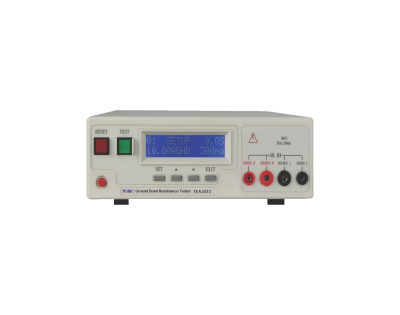

TES-9313 ♦ Eco-type AC Ground Bond Resistance Tester (32A/300mΩ)
Quantity
Short Description
An economical ground resistance tester that measures internal grounding resistance of electrical equipment. It reflects the total grounding, including contact resistance at exposed conductive parts and terminals. Using a four-terminal method, it eliminates contact resistance effects by measuring voltage and current to calculate resistance.
Product Description :
Specifications :
Ordering Information :
| TES-9313 is Economic ground resistance tester is used to measure the internal electrical equipment grounding resistance, it reflects the total grounding of electrical equipment around the exposed conducting part and electrical equipment terminal (contact resistance). Ground resistance tester in order to eliminate the effects of contact resistance test, using four terminal measurement method, namely in the measured electrical exposed between the guide part and the main earthing terminal with current voltage measurement, and then it ends, calculate the resistance value. |
Features
Constant current linear amplifier output
The front panel correction, high accuracy
Standard RS232, standard PLC interface
Key lock function
Four - end measurement precision
Up to 15 sets of test pattern memory
Alarm function
