TP-P series Switching DC Power Supply with the software (200-6000W)

TP-P series is a programmable switch-mode DC power supply with USB communication interface and up to 6kW output. Supports customizable voltage up to 1000V and current up to 300A for various industrial applications. Ideal for high-power testing environments requiring flexibility and precision.

Product description:
Specifications:
Ordering Information:



TP-P series will be replacement TP-S series due to this series able to control the output by used the software control via PC. TP-P seriesTP-P series programmable DC power supply is switch mode DC power supply with USB interface for communication. The maximum power is up to 6kW. Within this power, TP-P series is open to comprehensive customization of max voltage 1000V and max current 300A industrial applications.

Features:
  Max. output power ranging from 200W to 6kW.
  Max. output voltage 1000V, Max. output current 300A
  MCU digital control and advanced PWM regulation
  Compact design and light weight (3~9kg).
  Coarse and Fine control for voltage and current.
  Over voltage, over current and over temperature protections.
  Built-in beeper alarm.
  Intelligent temperature control cooling fan.
  Panel lock and output ON/OFF function
  USB interface can be changed to RS232 or RS485 interface at request.
  USB interface, support MODBUS-RTU commands.

  Constant voltage; CV/constant current;CC operations; Auto CV/CC switch
  Customized specifications and functions acceptable***

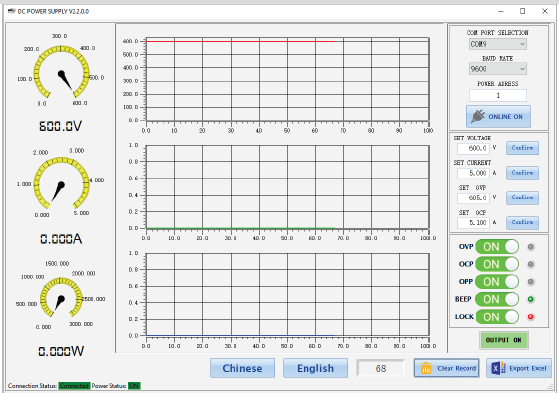

The software appearance of TP-P series per below:
