TES- 9700 series AC/DC Withstanding Voltage Tester with Insulation Resistance Tester (1% Accuracy)
| TES-9700 series is High precision AC/DC withstand voltage and insulation analyzer integrates AC withstand voltage, DC withstand voltage, insulation resistance, arc detection, open circuit detection and other functions. The size of the whole machine is 2U/half width, and the depth is about 300mm. It is compact and light, accurate and efficient, reliable and stable and has rich interfaces. |
Features
AC withstand voltage range 5kV/20mA with 1% accuracy, output capacity 100VA (Max)
Insulation resistance measurement range 6000V/50GΩ.
The whole machine adopts high-frequency power electronic conversion topology, stable output, extremely light.
Built-in fast rise + slow rise test function in accordance with IEC60601/GB9706.1 standard.
Built-in 100 test groups, each group supports 50 steps.
Open and short circuit detection function: support OSC AC output detection mode.
Arc detection function: built-in arc detection function based on waveform recognition, internationally unique, anti-interference, high accuracy.
User authority setting: built-in password function to distinguish different levels of users.
External interface: standard RS232, PLC/HANDLER and other interfaces.
Anti-electric shock protection function: built-in leakage protection function, response speed uS level.
Quick test: test step delay <50mS.
Support card expansion: TES97XX-8S supports direct card expansion of multi-channel serial scanning, etc.
Optional information function: Add TES-107 information module, support internal data storage, data export, MES docking, barcode scanner, USB storage and other functions.
Extremely Light
Built-in high-frequency power electronic conversion topology, the size and weight are greatly reduced. The length and width of the whole machine are equivalent to the area of an A4 paper and the weight of the whole machine is only 5.3 kg. Compared with traditional withstand voltage testers, Volume is compressed by half and the weight is reduced to 40%.
Leakage fast power-off protection
High voltage testing is dangerous to operators. TES-9700 series has a built-in leakage protection mechanism. When a user is electrocuted, the leakage current detection will be completed within milli-seconds and the voltage output will be cut off immediately to ensure safety.
Open-short circuit detection function

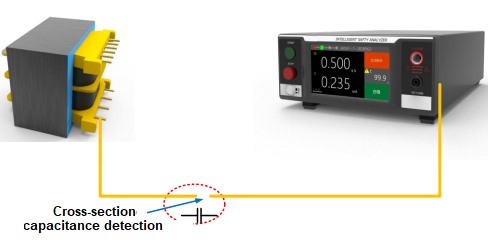

TES-9700 series utilizes low-voltage, high-frequency, lossless technology to increase the output voltage frequency while simultaneously reducing the voltage level. This allows for cross-sectional capacitance detection of the DUT, enabling open and short-circuit determination within 0.1s. This effectively addresses the issue of DUTs with relatively low actual leakage currents and short-circuit conditions being unsuitable for high-voltage lossy testing.
Arc Detection Function

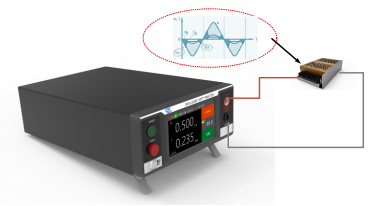

Arc is a self-sustaining discharge phenomenon caused by high voltage inside or on the surface of insulating materials. TES-9700 series can not only determine the discharge according to the arc level.
Information interface function
Supports USB barcode scanners, realizing functions such as code scanning to start, built-in data storage, barcode binding, and information upload. After code scanning to start, the test data will automatically match the current barcode, and can query the currently required test program according to the identification field set by the user, automatically call it, and complete the test and data storage.
