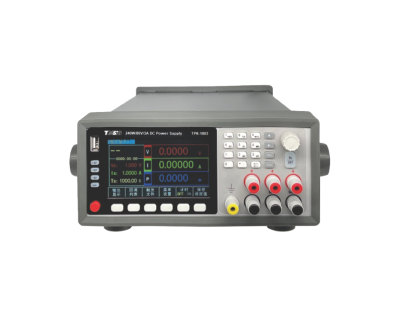

TPK-1000 series High-speed & High-precision Programmable Linear DC Power Supply

TPK-1000 series are programmable linear DC power supplies with high precision, low ripple, and compact design. Features a 4.3-inch 24-bit true color LCD, flexible voltage/current/time settings via knob or keypad. Supports screen capture, data logging, parameter saving, and USB firmware upgrades.

Product description:
Specifications:
Ordering Information:



TPK-1000 series are programmable linear DC power supplies, 4.3 inch 24-bit true color LCD, high precision, high stability, low ripple & noise. Ultra-small volume. Flexible and convenient setting methods of voltage, current and time (rotary knob or numeric key pad). Screen capture, data record and parameter save functions. With firmware program can be upgraded via USB HOST. It also support SCPI and MODBUS protocols.

Features

  4.3-inch 24-bit true color LCD screen, 480×272 resolution.
  Linear design, high speed and high precision (1ms/0.1mV/0.01mA).
  High precision, high stability, low ripple and low noise.

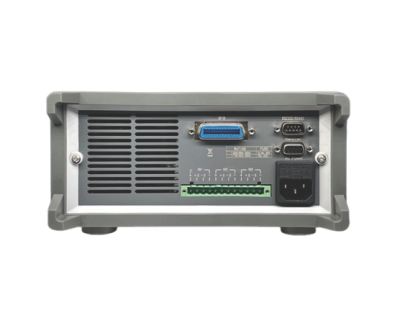

  1/22U ultra-small volume, front and rear panels (four terminals) output and sampling terminals.
  Voltage test (DVM), resistance test (51/2 digital milliohm meter).
  Can integrate 8-channel temperature test module (supports multiple thermocouples such as K, T, J, N, E, S, R, and B).
 Fresh and simple system settings, Chinese and English operation interface.
  Powerful programming capability, 1000 groups of setting states can be stored and recalled.
 20 trigger files, each file can have up to 1000 test series, programmed cycle output.
 Timing output: time (0.01-9999.99s).
 Flexible and convenient voltage, current, and time setting methods (knob or numeric keyboard)
 Remote compensation function.
 The measurement results can be saved in a USB flash drive.
 Screen capture function, data recording and parameter saving function.
 The instrument firmware can be upgraded via USB HOST.
 Handler interface is used for online operation.
 Intelligent temperature control fan to reduce noise.
 Over voltage, over current, over temperature protection.
