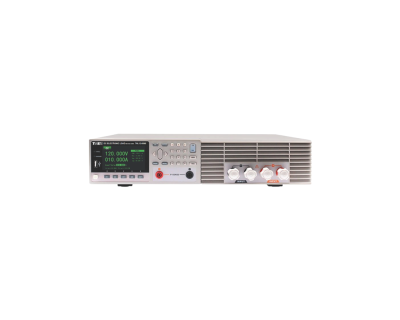

THL6/12-series Programmable DC Electronic Load (600 ~ 1200W)
THL6/12-series is a high-precision programmable DC electronic load at max 1200W/500V/60A with 3.5" color LCD, supporting CC, CV, CR, CP modes and 10 function modes. It offers comprehensive protections and multiple interfaces (RS232, LAN, USB, analog) for remote control and data analysis.
Categories :
DC Electronic Loads
Product Description:
Specifications:
Ordering Information:
| THL6 & THL12-series are DC electronic load at power max 600/1200W, 500V, 60A with a high-precision, programmable DC electronic load controlled by a high-performance microprocessor. 3.5-inch TFT true color LCD display, It has 4 base operating modes (CC/CV/CR/CP) and 10 functional modes. Has a comprehensive protection function, overheat protection, overcurrent protection, overpower protection, overvoltage protection, loop oscillation protection. Built-in rich interfaces, RS232, LAN, USB and analog interfaces for remote control and data acquisition, analysis. |
Features
500kHz high speed voltage, current sampling rate
High precision voltage and current measurement
Fast loop response speed and current slew rate
Programmable single step up to 10μS
Equipped with remote four-wire compensation
Unique real-time display of current ripple and voltage ripple
Real-time display of load power and resistance
Test Functions
4 basic working modes CC/CV/CR/CP and 10 functional modes multiple extended function modes:
DYNA dynamic test function
OCP over current protection mode
BATT battery mode
EFFT load effect mode
SWEEP dynamic frequency conversion scanning function
TIMEING _me measurement function
OVP over voltage protection mode
AUTO mode
LIST function
LED (THL1-1530A has no LED mode)
