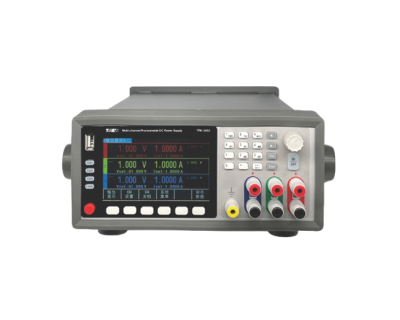

TPK-3000 series Multi-channels Programmable Linear DC Power Supply (30 ~ 360W)

TPK-3000 series programmable linear DC power supplies feature multi-channel output, 4.3" color LCD, high precision, and low noise. Support serial/parallel channel connection, voltage/current/time setting, USB firmware upgrade, and intelligent fan control. Ideal for R&D, production testing, lab teaching, PV and EV simulation, and automated system integration.

Product description:
Specifications:
Ordering Information:



TPK-3000 series is programmable linear DC power supplies, 4.3 inch 24-bit true color LCD, 480X272 resolution. Linear design, multi-channel output, support serial and parallel connection between channels. High precision, high stability, low ripple and low noise. Ultra-small volume 1/2 2U. Flexible and convenient setting methods of voltage, current and time (rotary knob or numeric keypad). Screen capture, data record and parameter save functions. The instrument firmware program can be upgraded via USB HOST. Manager interface control. Intelligent temperature control fan, reduce operating noise, over-voltage, over-current, over-temperature protection. For general R&D test and design verification, routine test and maintenance of production line workbench, automatic equipment integration test, photovoltaic simulation test, new energy vehicle simulation test, teaching laboratory.

Features

  4.3-inch 24-bit true color LCD screen, 480×272 resolution
  Linear design, high speed and high precision (1ms/0.1mV/0.01mA)
  High precision, high stability, low ripple and low noise
  1/22U ultra-small volume, front and rear panels (four terminals) output and sampling terminals
 Voltage test (DVM), resistance test (51/2 digital milliohm meter)
 Can integrate 8-channel temperature test module (supports multiple thermocouples such as K, T, J, N, E, S, R, and B)
 Fresh and simple system settings, Chinese and English operation interface
 Powerful programming capability, 1000 groups of setting states can be stored and recalled
 20 trigger files, each file can have up to 1000 test series, programmed cycle output
 Timing output: time (0.01-9999.99s)
 Flexible and convenient voltage, current, and time setting methods (knob or numeric keyboard)
 Remote compensation function
 The measurement results can be saved in a USB flash drive
 Screen capture function, data recording and parameter saving function
 The instrument firmware can be upgraded via USB HOST
 Handler interface is used for online operation
 Intelligent temperature control fan to reduce noise
 Over voltage, over current, over temperature protection
