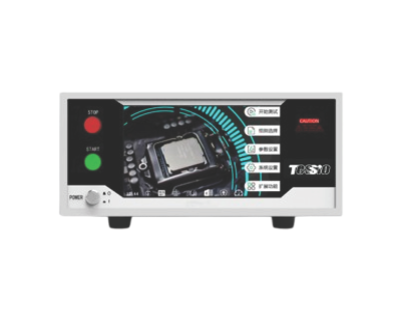

High-power AC/DC Withstanding Voltage Tester and IR function

TES-9631/32 is AC/DC withstand voltage and insulation resistance analyzer integrates AC withstand voltage, DC withstand voltage, insulation resistance, arc detection, open circuit detection and other functions. It is accurate, efficient, reliable and stable, has rich interfaces and touch screen operation, meeting the testing needs of various electronic and electrical devices. The series of products are small in size, light in weight, making them ideal for desktop testing, system integration and other working conditions.

 The whole machine adopts high-frequency power electronic conversion
topology, with stable output and extremely light weight.
 Insulation resistance measurement range 50GΩ.
 Built-in fast rise + slow rise test function in accordance with IEC60601/
GB9706.1 standard requirements.
 Built-in 100 test groups, each group supports 50 steps;- Open and short
circuit detection function: supports OSC AC output detection mode.
 Arc detection function: built-in arc detection function based on waveform recognition, internationally unique, anti-interference, high accuracy.
 User authority setting: built-in password function to distinguish different
levels of users.
 External interface: standard RS232, PLC/HANDLER and other interfaces.
 Anti-electric shock protection function: built-in leakage protection
function, response speed uS level.
 Quick test: test step delay <50mS.
